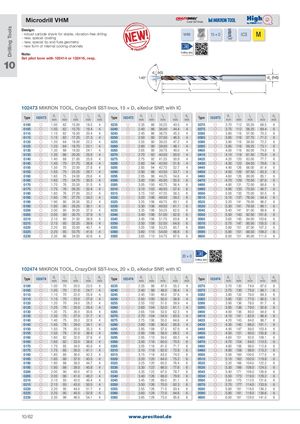

Общий каталог PRECITOOL

Microdrill VHM
Design: - robust carbide shank for stable, vibration-free drilling - new, special coating - new, special tip and flute geometry - new form of internal cooling channels Note: Set pilot bore with 102414 or 102416, resp.	VHM Cutting data	coated	15 × D	140°	ICS M

10 Set pilot bore with 102414 or 102416, resp. d (k5) 1 140°

102473 MIKRON TOOL, CrazyDrill SST-Inox, 15 × D, eXedur SNP, with IC

d (h6)

Type	102473	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm	Type	102473	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm	Type	102473	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm
0100		1�00	62	15�00	18�5	4	0235		2�35	86	35�25	43�5	4	0370		3�70	112	55�50	68�5	6
0105		1�05	62	15�75	19�4	4	0240		2�40	86	36�00	44�4	4	0375		3�75	112	56�25	69�4	6
0110		1�10	62	16�50	20�4	4	0245		2�45	86	36�75	45�3	4	0380		3�80	116	57�00	70�3	6
0115		1�15	62	17�25	21�3	4	0250		2�50	90	37�50	46�3	4	0385		3�85	116	57�75	71�2	6
0120		1�20	64	18�00	22�2	4	0255		2�55	90	38�25	47�2	4	0390		3�90	116	58�50	72�2	6
0125		1�25	64	18�75	23�1	4	0260		2�60	90	39�00	48�1	4	0395		3�95	116	59�25	73�1	6
0130		1�30	66	19�50	24�1	4	0265		2�65	90	39�75	49�0	4	0400		4�00	116	60�00	74�0	6
0135		1�35	66	20�25	25�0	4	0270		2�70	92	40�50	50�0	4	0410		4�10	118	61�50	75�9	6
0140		1�40	68	21�00	25�9	4	0275		2�75	92	41�25	50�9	4	0420		4�20	120	63�00	77�7	6
0145		1�45	70	21�75	26�8	4	0280		2�80	94	42�00	51�8	4	0430		4�30	122	64�50	79�6	6
0150		1�50	70	22�50	27�8	4	0285		2�85	94	42�75	52�7	4	0440		4�40	126	66�00	81�4	6
0155		1�55	75	23�25	28�7	4	0290		2�90	98	43�50	53�7	4	0450		4�50	126	67�50	83�3	6
0160		1�60	75	24�00	29�6	4	0295		2�95	98	44�25	54�6	4	0460		4�60	126	69�00	85�1	6
0165		1�65	75	24�75	30�5	4	0300		3�00	100	45�00	55�5	6	0470		4�70	129	70�50	87�0	6
0170		1�70	76	25�50	31�5	4	0305		3�05	100	45�75	56�4	6	0480		4�80	131	72�00	88�8	6
0175		1�75	76	26�25	32�4	4	0310		3�10	102	46�50	57�4	6	0490		4�90	133	73�50	90�7	6
0180		1�80	76	27�00	33�2	4	0315		3�15	102	47�25	58�3	6	0500		5�00	135	75�00	92�5	6
0185		1�85	76	27�75	34�2	4	0320		3�20	106	48�00	59�2	6	0510		5�10	137	76�50	94�4	6
0190		1�90	80	28�50	35�2	4	0325		3�25	106	48�75	60�1	6	0520		5�20	141	78�00	96�2	6
0195		1�95	80	29�25	36�1	4	0330		3�30	106	49�50	61�1	6	0530		5�30	141	79�50	98�1	6
0200		2�00	80	30�00	37�0	4	0335		3�35	106	50�25	62�0	6	0540		5�40	141	81�00	99�9	6
0205		2�05	80	30�75	37�9	4	0340		3�40	106	51�00	62�9	6	0550		5�50	143	82�50	101�8	6
0210		2�10	80	31�50	38�9	4	0345		3�45	106	51�75	63�8	6	0560		5�60	145	84�00	103�6	6
0215		2�15	85	32�25	39�8	4	0350		3�50	108	52�50	64�8	6	0570		5�70	147	85�50	105�5	6
0220		2�20	85	33�00	40�7	4	0355		3�55	108	53�25	65�7	6	0580		5�80	151	87�00	107�3	6
0225		2�25	85	33�75	41�6	4	0360		3�60	110	54�00	66�6	6	0590		5�90	151	88�50	109�2	6
0230		2�30	86	34�50	42�6	4	0365		3�65	110	54�75	67�5	6	0600		6�00	151	90�00	111�0	6

20 × D Cutting data

102474 MIKRON TOOL, CrazyDrill SST-Inox, 20 × D, eXedur SNP, with IC

Type	102474	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm	Type	102474	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm	Type	102474	d1 mm	l1 mm	l2 mm	l4 mm	d2 mm
0100		1�00	70	20�0	23�5	4	0235		2�35	98	47�0	55�2	4	0370		3�70	130	74�0	87�0	6
0105		1�05	70	21�0	24�7	4	0240		2�40	98	48�0	56�4	4	0375		3�75	130	75�0	88�1	6
0110		1�10	70	22�0	25�9	4	0245		2�45	100	49�0	57�6	4	0380		3�80	132	76�0	89�3	6
0115		1�15	70	23�0	27�0	4	0250		2�50	100	50�0	58�8	4	0385		3�85	132	77�0	90�5	6
0120		1�20	70	24�0	28�2	4	0255		2�55	102	51�0	59�9	4	0390		3�90	136	78�0	91�7	6
0125		1�25	70	25�0	29�4	4	0260		2�60	104	52�0	61�1	4	0395		3�95	136	79�0	92�8	6
0130		1�30	75	26�0	30�6	4	0265		2�65	104	53�0	62�3	4	0400		4�00	136	80�0	94�0	6
0135		1�35	75	27�0	31�7	4	0270		2�70	104	54�0	63�5	4	0410		4�10	141	82�0	96�4	6
0140		1�40	75	28�0	32�9	4	0275		2�75	106	55�0	64�6	4	0420		4�20	143	84�0	98�7	6
0145		1�45	78	29�0	34�1	4	0280		2�80	106	56�0	65�8	4	0430		4�30	145	86�0	101�1	6
0150		1�50	78	30�0	35�3	4	0285		2�85	108	57�0	67�0	4	0440		4�40	147	88�0	103�4	6
0155		1�55	78	31�0	36�4	4	0290		2�90	108	58�0	68�2	4	0450		4�50	151	90�0	105�8	6
0160		1�60	82	32�0	37�6	4	0295		2�95	110	59�0	69�3	4	0460		4�60	151	92�0	108�1	6
0165		1�65	82	33�0	38�8	4	0300		3�00	116	60�0	70�5	6	0470		4�70	154	94�0	110�5	6
0170		1�70	85	34�0	40�0	4	0305		3�05	116	61�0	71�7	6	0480		4�80	156	96�0	112�8	6
0175		1�75	85	35�0	41�1	4	0310		3�10	118	62�0	72�9	6	0490		4�90	158	98�0	115�2	6
0180		1�80	85	36�0	42�3	4	0315		3�15	118	63�0	74�0	6	0500		5�00	160	100�0	117�5	6
0185		1�85	88	37�0	43�5	4	0320		3�20	120	64�0	75�2	6	0510		5�10	162	102�0	119�8	6
0190		1�90	88	38�0	44�7	4	0325		3�25	120	65�0	76�4	6	0520		5�20	166	104�0	122�2	6
0195		1�95	88	39�0	45�8	4	0330		3�30	122	66�0	77�6	6	0530		5�30	166	106�0	124�5	6
0200		2�00	90	40�0	47�0	4	0335		3�35	122	67�0	78�7	6	0540		5�40	171	108�0	126�9	6
0205		2�05	90	41�0	48�2	4	0340		3�40	126	68�0	79�9	6	0550		5�50	173	110�0	129�2	6
0210		2�10	93	42�0	49�4	4	0345		3�45	126	69�0	81�1	6	0560		5�60	175	112�0	131�6	6
0215		2�15	93	43�0	50�5	4	0350		3�50	126	70�0	82�3	6	0570		5�70	177	114�0	133�9	6
0220		2�20	95	44�0	51�7	4	0355		3�55	126	71�0	83�4	6	0580		5�80	181	116�0	136�3	6
0225		2�25	95	45�0	52�9	4	0360		3�60	128	72�0	84�6	6	0590		5�90	181	118�0	138�6	6
0230		2�30	98	46�0	54�1	4	0365		3�65	128	73�0	85�8	6	0600		6�00	181	120�0	141�0	6
