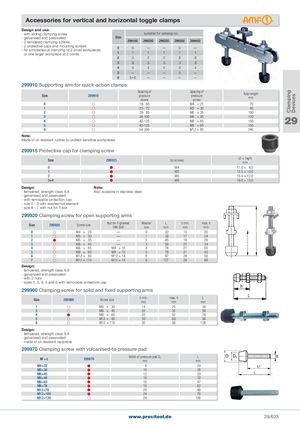

Clamping Devices Accessories for vertical and horizontal toggle clamps Design and use: - with sliding clamping screw suitable for catalog no. - galvanised and passivated Size - 2 tempered clamping screws 299100 299200 299250 299300 299450 - 2 protective caps and mounting screws- for simultaneous clamping of 2 small workpieces00— — 0 — or one larger workpiece at 2 points 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 5 — — — 5 — 6 5+6 — — — — 299910 Supporting arm for quick-action clamps Size 299910 Spacing of Spacing ofpressurepressurescrewscrewTotal length mm 0  18- 60 M4   × 25  70 1  22- 72 M5   × 30  85 2  28- 85 M6   × 35 100 34  34-100 M8   × 4540-125M8   × 65 120150 29 5  40-125 M8   × 65 150 6  54-200 M12 × 80 240 Note: Made of oil-resistant rubber to protect sensitive workpieces 299915 Protective cap for clamping screw Size 299915 for screws  × hightmm 0  M4 11.0 ×   8.5 1  M5 12.5 × 10.0 2  M6 15.0 × 12.0 3+4  M8 19.0 × 15.0 Design: Note: - tempered, strength class 8.8 Also available in stainless steel - galvanised and passivated - with removable protection cap - size 0 - 3 with washer/nut element - size 4 - 7 with nut for T-slot 299920 Clamping screw for open supporting arms Size 299920 Screw size Nut for T-grooves Washer L h min. max. hDIN 508sizemmmmmm L 0  M4   ×   25 — 0  32 13 20 1  M5   ×   30 — 1  38 17 24 2  M6   ×   35 — 2  45 19 28 3  M8   ×   45 — 3  58 22 34 h 4  M8   ×   65 M8   × 10 4  78 21 50 5  M8   ×   65 M8   × 10 5  78 21 45 6  M12 ×   80 M12 × 14 6  97 28 58 7  M12 × 110 M12 × 14 6 127 28 88 Design: - tempered, strength class 8.8 - galvanised and passivated - with 2 nuts - sizes 1, 3, 4, 5 and 6 with removable protection cap 299960 Clamping screw for solid and fixed supporting arms Size 299960 Screw size h min. max. h Lmmmmmm 1  M5   ×   30 14 25  38 3  M8   ×   45 22 32  58 4  M8   ×   65 22 52  78 5  M12 ×   80 30 60  98 6  M12 × 110 30 88 128 Design: - tempered, strength class 8.8 - galvanised and passivated - made of oil-resistant neoprene 299970 Clamping screw with vulcanised-to pressure pad M×L 299970 Width of pressure pad D 1 l1mmmm M4×32   8  24 M5×38  10  28 M6×45  12  33 M8×48  16  32 M8×63  16  47 M8×78  16  62 M12×70  24  46 M12×100  24  76 M12×130  24 106 www.precitool.de 29/623
