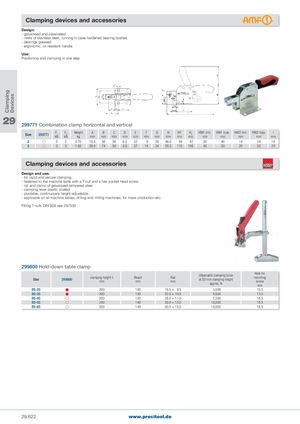

Clamping Devices Clamping devices and accessories Design: - galvanised and passivated - rivets of stainless steel, running in case-hardened bearing bushes - bearings greased - ergonomic, oil-resistant handle Use: Positioning and clamping in one step 29 299771 Combination clamp horizontal and vertical Size 299771 F1 F2kNkN Weightkg A B C D E F G H H1 H2 HW1 min. HW1 max. HW2 min. HW2 max. Immmmmmmmmmmmmmmmmmmmmmmmmmmmmm 2 2 2 0.70 19.5 56 50 6.5 32 9 28 46.0 94 87 30 40 14 24 16 3 3 3 1.62 29.0 74 50 8.5 37 14 34 55.5 110 106 40 50 20 30 20 Clamping devices and accessories Design and use: - for rapid and secure clamping - fastened to the machine table with a T-nut and a hex socket head screw - rail and clamp of galvanised tempered steel - clamping lever plastic coated - pivotable, continuously height-adjustable - applicable on all machine tables, drilling and milling machines, for mass production etc. Fitting T-nuts DIN 508 see 297500 299800 Hold-down table clamp Size 299800 clamping height hmm Reachmm Railmm Obtainable clamping forceat 50 mm clamping heightapprox. NHole formountingscrewmm BS-2S 200 100 19.5 × 9.5 3,500 10.5 BS-3S 200 120 22.0 × 10.5 5,500 13.0 BS-4S 200 120 28.0 × 11.0 7,500 16.5 BS-5S 240 140 30.0 × 15.0 10,000 16.5 BS-6S 500 140 30.0 × 15.0 10,000 16.5 29/622 www.precitool.de
