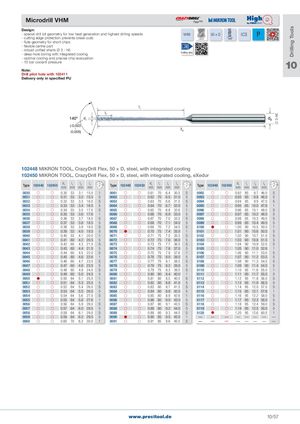

Общий каталог PRECITOOL

Microdrill VHM
Design: - special drill bit geometry for low heat generation and highest drilling speeds - cutting edge protection prevents break-outs	VHM	coated	50 × D	140°	ICS P
- flute geometry for short chips - flexible centre part - robust unified shank Ø 3 - h6 - deep-hole boring with integrated cooling - optimal cooling and precise chip evacuation - 10 bar coolant pressure	Cutting data
Note: Drill pilot hole with 102411 Delivery only in specified PU
d1 (-0,003 - -0,006) l4 l2						�3-h6

102448 MIKRON TOOL, CrazyDrill Flex, 50 × D, steel, with integrated cooling

102450 MIKRON TOOL, CrazyDrill Flex, 50 × D, steel, with integrated cooling, eXedur

Type	102448	102450	d1 mm	l1 mm	l2 mm	l4 mm		Type	102448	102450	d1 mm	l1 m	m l2 mm	l4 mm		Type	102448	102450	d1 mm	l1 mm l m	2 m	l4 mm
0030			0�30	53	3�1	15�0	1	0061			0�61	70	6�4	30�5	5	0092			0�92	85 9	�7	46�0	5
0031			0�31	53	3�2	15�5	5	0062			0�62	70	6�5	31�0	5	0093			0�93	85 9	�8	46�5	5
0032			0�32	53	3�3	16�0	5	0063			0�63	70	6�6	31�5	5	0094			0�94	85 9	�9	47�0	5
0033			0�33	53	3�4	16�5	5	0064			0�64	70	6�7	32�0	5	0095			0�95	85 10	�0	47�6	1
0034			0�34	53	3�5	17�0	5	0065			0�65	70	6�8	32�6	1	0096			0�96	85 10	�1	48�0	5
0035			0�35	53	3�6	17�6	1	0066			0�66	70	6�9	33�0	5	0097			0�97	85 10	�2	48�5	5
0036			0�36	53	3�7	18�0	5	0067			0�67	70	7�0	33�5	5	0098			0�98	85 10	�3	49�0	5
0037			0�37	53	3�8	18�5	5	0068			0�68	70	7�1	34�0	5	0099			0�99	85 10	�4	49�5	5
0038			0�38	53	3�9	19�0	5	0069			0�69	70	7�2	34�5	5	0100			1�00	90 10	�5	50�0	1
0039			0�39	53	4�0	19�5	5	0070			0�70	75	7�4	35�0	1	0101			1�01	90 10	�6	50�5	5
0040			0�40	53	4�1	20�0	1	0071			0�71	75	7�5	35�5	5	0102			1�02	90 10	�7	51�0	5
0041			0�41	60	4�2	20�5	5	0072			0�72	75	7�6	36�0	5	0103			1�03	90 10	�8	51�5	5
0042			0�42	60	4�3	21�0	5	0073			0�73	75	7�7	36�5	5	0104			1�04	90 10	�9	52�0	5
0043			0�43	60	4�4	21�5	5	0074			0�74	75	7�8	37�0	5	0105			1�05	90 11	�0	52�6	1
0044			0�44	60	4�5	22�0	5	0075			0�75	75	7�9	37�6	1	0106			1�06	90 11	�1	53�0	5
0045			0�45	60	4�6	22�6	1	0076			0�76	75	8�0	38�0	5	0107			1�07	90 11	�2	53�5	5
0046			0�46	60	4�7	23�0	5	0077			0�77	75	8�1	38�5	5	0108			1�08	90 11	�3	54�0	5
0047			0�47	60	4�8	23�5	5	0078			0�78	75	8�2	39�0	5	0109			1�09	90 11	�4	54�5	5
0048			0�48	60	4�9	24�0	5	0079			0�79	75	8�3	39�5	5	0110			1�10	95 11	�6	55�0	1
0049			0�49	60	5�0	24�5	5	0080			0�80	80	8�4	40�0	1	0111			1�11	95 11	�7	55�5	5
0050			0�50	64	5�1	25�0	1	0081			0�81	80	8�5	40�5	5	0112			1�12	95 11	�8	56�0	5
0051			0�51	64	5�3	25�5	5	0082			0�82	80	8�6	41�0	5	0113			1�13	95 11	�9	56�5	5
0052			0�52	64	5�4	26�0	5	0083			0�83	80	8�7	41�5	5	0114			1�14	95 12	�0	57�0	5
0053			0�53	64	5�5	26�5	5	0084			0�84	80	8�8	42�0	5	0115			1�15	95 12	�1	57�6	1
0054			0�54	64	5�6	27�0	5	0085			0�85	80	8�9	42�6	1	0116			1�16	95 12	�2	58�0	5
0055			0�55	64	5�8	27�6	1	0086			0�86	80	9�0	43�0	5	0117			1�17	95 12	�3	58�5	5
0056			0�56	64	5�9	28�0	5	0087			0�87	80	9�1	43�5	5	0118			1�18	95 12	�4	59�0	5
0057			0�57	64	6�0	28�5	5	0088			0�88	80	9�2	44�0	5	0119			1�19	95 12	�5	59�5	5
0058			0�58	64	6�1	29�0	5	0089			0�89	80	9�3	44�5	5	0120			1�20	95 12	�6	60�0	1
0059			0�59	64	6�2	29�5	5	0090			0�90	85	9�5	45�0	1	—	—	—	—	—	—	—	—
0060			0�60	70	6�3	30�0	1	0091			0�91	85	9�6	45�5	5	—	—	—	—	—	—	—	—
