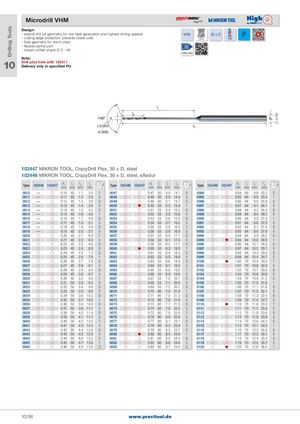

Общий каталог PRECITOOL - страница 61

Microdrill VHM Drilling Tools Design: - special drill bit geometry for low heat generation and highest drilling speeds - cutting edge protection prevents break-outs VHM coated 30 × D 140° P - flute geometry for short chips - flexible centre part - robust unified shank Ø 3 - h6 Cutting data Note: 10 Drill pilot hole with 102411 Delivery only in specified PU l4  3-h6 d1 (-0,003 - -0,006) 102447 MIKRON TOOL, CrazyDrill Flex, 30 × D, steel 102446 MIKRON TOOL, CrazyDrill Flex, 30 × D, steel, eXedur d1 l1 l2 l4 d1 l1 l2 l4 d1 l1 l2 l4 Type 102446 102447 Type 102446 102447 Type 102446 102447 mm mm mm mm mm mm mm mm mm mm mm mm 0010 —  0.10 45 1.1 3.0 1 0047   0.47 50 4.9 14.1 5 0084   0.84 60 8.8 25.2 5 0011 —  0.11 45 1.2 3.3 5 0048   0.48 50 5.0 14.4 5 0085   0.85 64 8.9 25.5 1 0012 —  0.12 45 1.3 3.6 5 0049   0.49 50 5.1 14.7 5 0086   0.86 64 9.0 25.8 5 0013 —  0.13 45 1.4 3.9 5 0050   0.50 53 5.3 15.0 1 0087   0.87 64 9.1 26.1 5 0014 —  0.14 45 1.5 4.2 5 0051   0.51 53 5.4 15.3 5 0088   0.88 64 9.2 26.4 5 0015 —  0.15 45 1.6 4.5 1 0052   0.52 53 5.5 15.6 5 0089   0.89 64 9.4 26.7 5 0016 —  0.16 45 1.7 4.8 5 0053   0.53 53 5.6 15.9 5 0090   0.90 64 9.5 27.0 1 0017 —  0.17 45 1.8 5.1 5 0054   0.54 53 5.7 16.2 5 0091   0.91 64 9.6 27.3 5 0018 —  0.18 45 1.9 5.4 5 0055   0.55 53 5.8 16.5 1 0092   0.92 64 9.7 27.6 5 0019 —  0.19 45 2.0 5.7 5 0056   0.56 53 5.9 16.8 5 0093   0.93 64 9.8 27.9 5 0020   0.20 45 2.1 6.0 1 0057   0.57 53 6.0 17.1 5 0094   0.94 64 9.9 28.2 5 0021   0.21 45 2.2 6.3 5 0058   0.58 53 6.1 17.4 5 0095   0.95 64 10.0 28.5 1 0022   0.22 45 2.3 6.6 5 0059   0.59 53 6.2 17.7 5 0096   0.96 64 10.1 28.8 5 0023   0.23 45 2.4 6.9 5 0060   0.60 53 6.3 18.0 1 0097   0.97 64 10.2 29.1 5 0024   0.24 45 2.5 7.2 5 0061   0.61 53 6.4 18.3 5 0098   0.98 64 10.3 29.4 5 0025   0.25 45 2.6 7.5 1 0062   0.62 53 6.5 18.6 5 0099   0.99 64 10.4 29.7 5 0026   0.26 45 2.7 7.8 5 0063   0.63 53 6.6 18.9 5 0100   1.00 70 10.5 30.0 1 0027   0.27 45 2.8 8.1 5 0064   0.64 53 6.7 19.2 5 0101   1.01 70 10.6 30.3 5 0028   0.28 45 2.9 8.4 5 0065   0.65 53 6.8 19.5 1 0102   1.02 70 10.7 30.6 5 0029   0.29 45 3.0 8.7 5 0066   0.66 53 6.9 19.8 5 0103   1.03 70 10.8 30.9 5 0030   0.30 50 3.2 9.0 1 0067   0.67 53 7.0 20.1 5 0104   1.04 70 10.9 31.2 5 0031   0.31 50 3.3 9.3 5 0068   0.68 53 7.1 20.4 5 0105   1.05 70 11.0 31.5 1 0032   0.32 50 3.4 9.6 5 0069   0.69 53 7.2 20.7 5 0106   1.06 70 11.1 31.8 5 0033   0.33 50 3.5 9.9 5 0070   0.70 60 7.4 21.0 1 0107   1.07 70 11.2 32.1 5 0034   0.34 50 3.6 10.2 5 0071   0.71 60 7.5 21.3 5 0108   1.08 70 11.3 32.4 5 0035   0.35 50 3.7 10.5 1 0072   0.72 60 7.6 21.6 5 0109   1.09 70 11.4 32.7 5 0036   0.36 50 3.8 10.8 5 0073   0.73 60 7.7 21.9 5 0110   1.10 70 11.6 33.0 1 0037   0.37 50 3.9 11.1 5 0074   0.74 60 7.8 22.2 5 0111   1.11 70 11.7 33.3 5 0038   0.38 50 4.0 11.4 5 0075   0.75 60 7.9 22.5 1 0112   1.12 70 11.8 33.6 5 0039   0.39 50 4.1 11.7 5 0076   0.76 60 8.0 22.8 5 0113   1.13 70 11.9 33.9 5 0040   0.40 50 4.2 12.0 1 0077   0.77 60 8.1 23.1 5 0114   1.14 70 12.0 34.2 5 0041   0.41 50 4.3 12.3 5 0078   0.78 60 8.2 23.4 5 0115   1.15 70 12.1 34.5 1 0042   0.42 50 4.4 12.6 5 0079   0.79 60 8.3 23.7 5 0116   1.16 70 12.2 34.8 5 0043   0.43 50 4.5 12.9 5 0080   0.80 60 8.4 24.0 1 0117   1.17 70 12.3 35.1 5 0044   0.44 50 4.6 13.2 5 0081   0.81 60 8.5 24.3 5 0118   1.18 70 12.4 35.4 5 0045   0.45 50 4.7 13.5 1 0082   0.82 60 8.6 24.6 5 0119   1.19 70 12.5 35.7 5 0046   0.46 50 4.8 13.8 5 0083   0.83 60 8.7 24.9 5 0120   1.20 70 12.6 36.0 1 10/56 www.precitool.de
