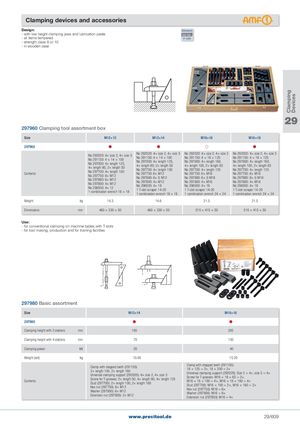

Общий каталог PRECITOOL - страница 614

Clamping Devices Clamping devices and accessories Design: Delivered - with low height clamping jaws and lubrication paste - all items tempered in case - strength class 8 or 10 - in wooden case 29 297960 Clamping tool assortment box Size M12×12 M12×14 M16×16 M16×18 297960     Contents No 292020: 4× size 2, 4× size 3No 291150: 4 × 14 × 100No 297000: 4× length 125,4× length 80, 2× length 50No 297700: 4× length 100No 297750: 6× M12No 297880: 6× M12No 297800: 4× M12No 296500: 4× 121 combination wrench 18 × 18No 292020: 4× size 2, 4× size 3No 291150: 4 × 14 × 100No 297000: 4× length 125,4× length 80, 2× length 50No 297700: 4× length 100No 297750: 6× M12No 297880: 6× G M12No 297800: 4× M12No 296500: 4× 161 T-slot scraper 14-201 combination wrench 18 × 18No 292020: 4× size 2, 4× size 3No 291150: 4 × 18 × 125No 297000: 4× length 160,4× length 100, 2× length 63No 297700: 4× length 125No 297750: 6× M16No 297880: 6× G M16No 297800: 4× M16No 296500: 4× 161 T-slot scraper 14-201 combination wrench 24 × 24No 292020: 4× size 2, 4× size 3No 291150: 4 × 18 × 125No 297000: 4× length 160,4× length 100, 2× length 63No 297700: 4× length 125No 297750: 6× M16No 297880: 6× G M16No 297800: 4× M16No 296500: 4× 181 T-slot scraper 14-201 combination wrench 24 × 24 Weightkg 14.3 14.6 21.5 21.5 Dimensionsmm 460 × 330 × 50 460 × 330 × 50 510 × 415 × 50 510 × 415 × 50 Use: - for conventional clamping on machine tables with T-slots - for tool making, production and for training facilities 297980 Basic assortment Size M12×14 M16×18 297980   Clamping height with 2 stations mm 165 205 Clamping height with 4 stations mm  70 130 Clamping power kN  20  40 Weight (set) kg    10.00    15.20 Contents Clamp with stepped teeth (291150):2× length 100, 2× length 160Universal clamping support (292020): 4× size 2, 4× size 3Screw for T-grooves: 2× length 50, 4× length 80, 4× length 125Stud (297700): 2× length 100, 2× length 160Hex nut (297750): 6× M12Washer (297800): 6× M12Extension nut (297850): 2× M12Clamp with stepped teeth (291150):18 × 125 = 2×, 18 × 200 = 2×Universal clamping support (292020): Size 2 = 4×, size 3 = 4×Screw for T-grooves: M16 × 18 × 63 = 2×,M16 × 18 × 100 = 4×, M16 × 18 × 160 = 4×Stud (297700): M16 × 100 = 2×, M16 × 160 = 2×Hex nut (297750): M16 = 6×Washer (297800): M16 = 6×Extension nut (297850): M16 = 4× www.precitool.de 29/609
