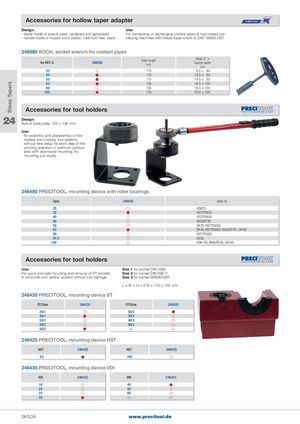

Steep Tapers Accessories for hollow taper adapter € Design: Use: - blade made of special steel, hardened and galvanised For connecting or exchanging coolant pipes at high-speed pro- - handle made of impact-proof plastic, cadmium free, black cessing machines with hollow taper shank to DIN 69893 HST 246980 KOCH, socket wrench for coolant pipes for HST-A 246980 Total lengthmm Head  ×handle widthmm 32  115   8.5 ×   80 40  115 10.5 ×   80 50  115 14.5 ×   80 63  135 16.5 × 100 80  135 18.5 × 100 100  135 22.0 × 100 Accessories for tool holders 24 Design:Size of base plate: 120 × 195 mm Use: - for assembly and disassembly of tool holders and modular tool systems - without new setup for each step of the working operation in optimum position (also with downward mounting, for mounting pull studs) 246480 PRECITOOL, mounting device with roller bearings Type 246480 Ideal for 25  HSK25 32  HST/PSK32 40  HST/PSK40 46  MAS/BT30 50  SK30, HST/PSK50 63  SK40, HST/PSK63, MAS/BT40, CAT40 80  HST/PSK80 97,5  SK50 100  HSK100, MAS/BT50, CAT50 Accessories for tool holders Use: Size 1 for socket DIN 2080 For quick and safe mounting and removal of ST sockets Size 2 for socket DIN 69871 in horizontal and vertical position without tool damage Size 3 for socket MAS403/BT L × W × H = 276 × 110 × 155 mm 246420 PRECITOOL, mounting device ST ST/Size 246420 ST/Size 246420 30/1  50/2  40/1  30/3  50/1  40/3  30/2  50/3  40/2  — — 246425 PRECITOOL, mounting device HST HST 246425 HST 246425 63  100  246435 PRECITOOL, mounting device VDI VDI 246435 VDI 246435 16  40  20  50  25  60  30  — — 24/534 www.precitool.de
