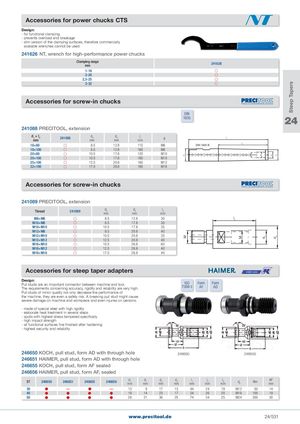

d1M M g d3 d3 d d44 Steep Tapers Accessories for power chucks CTS Design: - for functional clamping - prevents overload and breakage - slim version of the clamping surfaces, therefore commercially available wrenches cannot be used 241626 NT, wrench for high-performance power chucks Clamping rangemm 241626 1-16 2-20 2,5-25 3-32 Accessories for screw-in chucks DIN 1835 24 241088 PRECITOOL, extension d1 × l2mm 241088 d 3mm d l41mmmm g l1 16×60 8.5 12.8 115 M8 DIN 1835 B l2 16×100 8.5 12.8 160 M8 20×60 10.5 17.8 120 M10 20×100 10.5 17.8 160 M10 25×100 12.5 20.8 160 M12 32×100 17.0 28.8 160 M16 Accessories for screw-in chucks 241089 PRECITOOL, extension Thread 241089 d3mm d4mm l2mm M8×M8 8.5 12.8 30 l2 M10×M8 8.5 17.8 30 M10×M10 10.5 17.8 35 M12×M8 8.5 20.8 40 M12×M10 10.5 20.8 35 M12×M12 12.5 20.8 40 M16×M10 10.5 28.8 60 M16×M12 12.5 28.8 40 M16×M16 17.0 28.8 40 Accessories for steep taper adapters Design: Pull studs are an important connector between machine and tool.The requirements concerning accuracy, rigidity and reliability are very high. ISO Form Form7388-3AFAD Pull studs of minor quality not only decrease the performance of the machine, they are even a safety risk. A breaking pull stud might cause severe damage on machine and workpiece and even injuries on persons. - made of special steel with high rigidity - elaborate heat treatment in several steps - spots with highest stress tempered specifically - high impact strength - all functional surfaces fine finished after hardening - highest security and reliability 246650 KOCH, pull stud, form AD with through hole 246650 246655 246651 HAIMER, pull stud, form AD with through hole 246655 KOCH, pull stud, form AF sealed 246656 HAIMER, pull stud, form AF, sealed ST 246650 246651 246655 246656 d 1mm d ²mm d 3mm d 4mm l 1mm l 2mm l 3mm d 5 Nm AFmm 30 — — 13 9 17 13 44 24 19 M12 50 14 40 19 14 23 17 54 26 20 M16 100 19 50 28 21 36 25 74 34 25 M24 200 30 www.precitool.de 24/531
