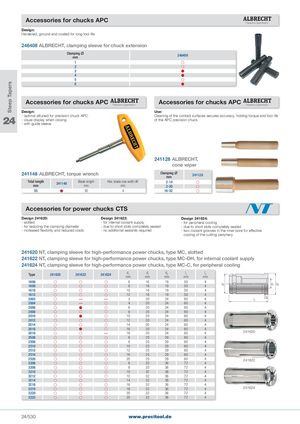

Steep Tapers Accessories for chucks APC Design: Hardened, ground and coated for long tool life 246408 ALBRECHT, clamping sleeve for chuck extension Clamping mm 246408 1  2  3  4  5  6  Accessories for chucks APC Accessories for chucks APC Design: Use: - optimal attuned for precision chuck APC Cleaning of the contact surfaces secures accuracy, holding torque and tool life 24 - visual display when closing- with guide sleeve of the APC precision chuck 241128 ALBRECHT, cone wiper 241148 ALBRECHT, torque wrench Clamping mm 241128 Total lengthmm 241148 Blade lengthmm Hex. blade size width AFmm 2-14 2-20 55  30 4 16-32  Accessories for power chucks CTS Design 241620: Design 241622: Design 241624: - slotted - for internal coolant supply - for peripheral cooling - for reducing the clamping diameter - due to short slots completely sealed - due to short slots completely sealed - increased flexibility and reduced costs - no additional sealants required - two coolant grooves in the inner bore for effective cooling of the cutting periphery 241620 NT, clamping sleeve for high-performance power chucks, type MC, slotted 241622 NT, clamping sleeve for high-performance power chucks, type MC-OH, for internal coolant supply 241624 NT, clamping sleeve for high-performance power chucks, type MC-C, for peripheral cooling Type 241620 241622 241624 d d1 ²mmmm d l3 1mmmm l 3mm 1606    6 16 19 50 4 1608    8 16 19 50 4 d2 d1 d3 1610    10 16 19 50 4 1612    12 16 19 50 4 l3 2003  — — 3 20 24 60 4 l1 2004  —  4 20 24 60 4 2006    6 20 24 60 4 2008    8 20 24 60 4 2010    10 20 24 60 4 2012    12 20 24 60 4 2014    14 20 24 60 4 2016    16 20 24 60 4 2018   — 18 20 24 60 4 241620 2506    6 25 29 60 4 2508    8 25 29 60 4 2510    10 25 29 60 4 2512    12 25 29 60 4 2516    16 25 29 60 4 2520    20 25 29 60 4 241622 3206    6 32 36 72 4 3208    8 32 36 72 4 3210    10 32 36 72 4 3212    12 32 36 72 4 3214    14 32 36 72 4 3216    16 32 36 72 4 3218    18 32 36 72 4 241624 3220    20 32 36 72 4 3225    25 32 36 72 4 24/530 www.precitool.de
