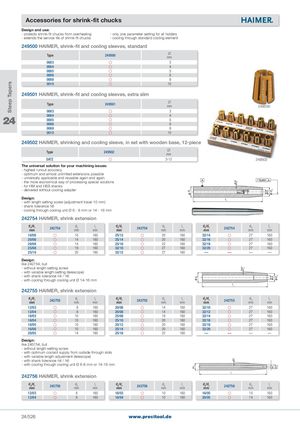

Accessories for shrink-fit chucks
- protects shrink-fit chucks from overheating - only one parameter setting for all holders - extends the service life of shrink-fit chucks - cooling through standard cooling element
249500 HAIMER, shrink-fit and cooling sleeves, standard
| Type | 249500 | |
| mm | ||
| 0003 | | 3 |
| 0004 | | 4 |
| 0005 | | 5 |
| 0006 | | 6 |
| 0008 | | 8 |
| 0010 | | 10 |
| 249501 HAIMER, shrink-fit and cooling sleeves, extra slim | ||
| Type | 249501 | |
| 249500 mm | ||
| 0003 | | 3 |
| 24 0004 | | 4 |
| 0005 | | 5 |
| 0006 | | 6 |
| 0008 | | 8 |
| 0010 | | 10 |
| 249502 HAIMER, shrinking and cooling sleeve, in set with wooden base, 12-piece | ||
| Type | 249502 | |
| mm | ||
| SATZ | | 249502 3-12 |
The universal solution for your machining issues: - highest runout accuracy - optimum and almost unlimited extensions possible - universally applicable and reusable again and again
- the more economical way of processing special solutions - for HM and HSS shanks - delivered without cooling adapter
Design: l - with length setting screw (adjustment travel 10 mm) 1 - shank tolerance h6 - cooling through cooling unit Ø 6 - 8 mm or 14 - 16 mm
242754 HAIMER, shrink extension
| d4/d1 mm | 242754 | d3 mm | l1 mm | d4/d1 mm | 242754 | d3 mm | l1 mm | d4/d1 mm | 242754 | d3 mm | l1 mm |
| 16/06 | | 10 | 160 | 25/12 | | 20 | 160 | 32/14 | | 27 | 160 |
| 20/06 | | 14 | 160 | 25/14 | | 20 | 160 | 32/16 | | 27 | 160 |
| 20/08 | | 14 | 160 | 25/16 | | 22 | 160 | 32/18 | | 27 | 160 |
| 25/08 | | 19 | 160 | 32/10 | | 27 | 160 | 32/20 | | 27 | 160 |
| 25/10 | | 20 | 160 | 32/12 | | 27 | 160 | — | — | — | — |
Design: like 242754, but - without length setting screw - with variable length setting (telescope) - with shank tolerance h4 / h6 - with cooling through cooling unit Ø 14-16 mm
242755 HAIMER, shrink extension
l 1
| d4/d1 mm | 242755 | d3 mm | l1 mm | d4/d1 mm | 242755 | d3 mm | l1 mm | d4/d1 mm | 242755 | d3 mm | l1 mm |
| 12/03 | | 8 | 160 | 20/06 | | 14 | 160 | 32/10 | | 27 | 160 |
| 12/04 | | 8 | 160 | 20/08 | | 14 | 160 | 32/12 | | 27 | 160 |
| 16/03 | | 10 | 160 | 25/08 | | 19 | 160 | 32/14 | | 27 | 160 |
| 16/04 | | 10 | 160 | 25/10 | | 20 | 160 | 32/16 | | 27 | 160 |
| 16/05 | | 10 | 160 | 25/12 | | 20 | 160 | 32/18 | | 27 | 160 |
| 16/06 | | 10 | 160 | 25/14 | | 20 | 160 | 32/20 | | 27 | 160 |
| 20/05 | | 14 | 160 | 25/16 | | 22 | 160 | — | — | — | — |
Design: like 245754, but - without length setting screw - with optimum coolant supply from outside through slots - with variable length adjustment (telescope) - with shank tolerance h4 / h6
| g | g | d4 | d1 d3 | ||||||||
| 2756 H | AIMER, shri | nk exte | nsion | l1 | |||||||
| d4/d1 mm | 242756 | d3 mm | l1 mm | d4/d1 mm | 242756 | d3 mm | l1 mm | d4/d1 mm | 242756 | d3 mm | l1 mm |
| 12/03 | | 8 | 160 | 16/03 | | 10 | 160 | 16/05 | | 10 | 160 |
| 12/04 | | 8 | 160 | 16/04 | | 10 | 160 | 20/05 | | 14 | 160 |
