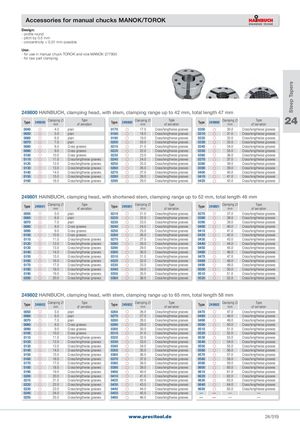

Общий каталог PRECITOOL - страница 524
Навигация
- profile round - pitch by 0.5 mm - concentricity < 0.01 mm possible
Use: - for use in manual chuck TOROK and vice MANOK 277900 - for raw part clamping
249800 HAINBUCH, clamping head, with stem, clamping range up to 42 mm, total length 47 mm
24
| Type | 249800 | Clamping mm | Type of serration | Type | 249800 | Clamping mm | Type of serration | Type | 249800 | Clamping mm | Type of serration |
| 0040 | | 4�0 | plain | 0170 | | 17�0 | Cross/lengthwise grooves | 0300 | | 30�0 | Cross/lengthwise grooves |
| 0050 | | 5�0 | plain | 0180 | | 18�0 | Cross/lengthwise grooves | 0310 | | 31�0 | Cross/lengthwise grooves |
| 0060 | | 6�0 | plain | 0190 | | 19�0 | Cross/lengthwise grooves | 0320 | | 32�0 | Cross/lengthwise grooves |
| 0070 | | 7�0 | plain | 0200 | | 20�0 | Cross/lengthwise grooves | 0330 | | 33�0 | Cross/lengthwise grooves |
| 0080 | | 8�0 | Cross grooves | 0210 | | 21�0 | Cross/lengthwise grooves | 0340 | | 34�0 | Cross/lengthwise grooves |
| 0090 | | 9�0 | Cross grooves | 0220 | | 22�0 | Cross/lengthwise grooves | 0350 | | 35�0 | Cross/lengthwise grooves |
| 0100 | | 10�0 | Cross grooves | 0230 | | 23�0 | Cross/lengthwise grooves | 0360 | | 36�0 | Cross/lengthwise grooves |
| 0110 | | 11�0 | Cross/lengthwise grooves | 0240 | | 24�0 | Cross/lengthwise grooves | 0370 | | 37�0 | Cross/lengthwise grooves |
| 0120 | | 12�0 | Cross/lengthwise grooves | 0250 | | 25�0 | Cross/lengthwise grooves | 0380 | | 38�0 | Cross/lengthwise grooves |
| 0130 | | 13�0 | Cross/lengthwise grooves | 0260 | | 26�0 | Cross/lengthwise grooves | 0390 | | 39�0 | Cross/lengthwise grooves |
| 0140 | | 14�0 | Cross/lengthwise grooves | 0270 | | 27�0 | Cross/lengthwise grooves | 0400 | | 40�0 | Cross/lengthwise grooves |
| 0150 | | 15�0 | Cross/lengthwise grooves | 0280 | | 28�0 | Cross/lengthwise grooves | 0410 | | 41�0 | Cross/lengthwise grooves |
| 0160 | | 16�0 | Cross/lengthwise grooves | 0290 | | 29�0 | Cross/lengthwise grooves | 0420 | | 42�0 | Cross/lengthwise grooves |
249801 HAINBUCH, clamping head, with shortened stem, clamping range up to 52 mm, total length 46 mm
| Type | 249801 | Clamping mm | Type of serration | Type | 249801 | Clamping mm | Type of serration | Type | 249801 | Clamping mm | Type of serration |
| 0050 | | 5�0 | plain | 0210 | | 21�0 | Cross/lengthwise grooves | 0370 | | 37�0 | Cross/lengthwise grooves |
| 0060 | | 6�0 | plain | 0220 | | 22�0 | Cross/lengthwise grooves | 0380 | | 38�0 | Cross/lengthwise grooves |
| 0070 | | 7�0 | plain | 0230 | | 23�0 | Cross/lengthwise grooves | 0390 | | 39�0 | Cross/lengthwise grooves |
| 0080 | | 8�0 | Cross grooves | 0240 | | 24�0 | Cross/lengthwise grooves | 0400 | | 40�0 | Cross/lengthwise grooves |
| 0090 | | 9�0 | Cross grooves | 0250 | | 25�0 | Cross/lengthwise grooves | 0410 | | 41�0 | Cross/lengthwise grooves |
| 0100 | | 10�0 | Cross grooves | 0260 | | 26�0 | Cross/lengthwise grooves | 0420 | | 42�0 | Cross/lengthwise grooves |
| 0110 | | 11�0 | Cross/lengthwise grooves | 0270 | | 27�0 | Cross/lengthwise grooves | 0430 | | 43�0 | Cross/lengthwise grooves |
| 0120 | | 12�0 | Cross/lengthwise grooves | 0280 | | 28�0 | Cross/lengthwise grooves | 0440 | | 44�0 | Cross/lengthwise grooves |
| 0130 | | 13�0 | Cross/lengthwise grooves | 0290 | | 29�0 | Cross/lengthwise grooves | 0450 | | 45�0 | Cross/lengthwise grooves |
| 0140 | | 14�0 | Cross/lengthwise grooves | 0300 | | 30�0 | Cross/lengthwise grooves | 0460 | | 46�0 | Cross/lengthwise grooves |
| 0150 | | 15�0 | Cross/lengthwise grooves | 0310 | | 31�0 | Cross/lengthwise grooves | 0470 | | 47�0 | Cross/lengthwise grooves |
| 0160 | | 16�0 | Cross/lengthwise grooves | 0320 | | 32�0 | Cross/lengthwise grooves | 0480 | | 48�0 | Cross/lengthwise grooves |
| 0170 | | 17�0 | Cross/lengthwise grooves | 0330 | | 33�0 | Cross/lengthwise grooves | 0490 | | 49�0 | Cross/lengthwise grooves |
| 0180 | | 18�0 | Cross/lengthwise grooves | 0340 | | 34�0 | Cross/lengthwise grooves | 0500 | | 50�0 | Cross/lengthwise grooves |
| 0190 | | 19�0 | Cross/lengthwise grooves | 0350 | | 35�0 | Cross/lengthwise grooves | 0510 | | 51�0 | Cross/lengthwise grooves |
| 0200 | | 20�0 | Cross/lengthwise grooves | 0360 | | 36�0 | Cross/lengthwise grooves | 0520 | | 52�0 | Cross/lengthwise grooves |
249802 HAINBUCH, clamping head, with stem, clamping range up to 65 mm, total length 58 mm
| Type | 249802 | Clamping mm | Type of serration | Type | 249802 | Clamping mm | Type of serration | Type | 249802 | Clamping mm | Type of serration |
| 0050 | | 5�0 | plain | 0260 | | 26�0 | Cross/lengthwise grooves | 0470 | | 47�0 | Cross/lengthwise grooves |
| 0060 | | 6�0 | plain | 0270 | | 27�0 | Cross/lengthwise grooves | 0480 | | 48�0 | Cross/lengthwise grooves |
| 0070 | | 7�0 | plain | 0280 | | 28�0 | Cross/lengthwise grooves | 0490 | | 49�0 | Cross/lengthwise grooves |
| 0080 | | 8�0 | Cross grooves | 0290 | | 29�0 | Cross/lengthwise grooves | 0500 | | 50�0 | Cross/lengthwise grooves |
| 0090 | | 9�0 | Cross grooves | 0300 | | 30�0 | Cross/lengthwise grooves | 0510 | | 51�0 | Cross/lengthwise grooves |
| 0100 | | 10�0 | Cross grooves | 0310 | | 31�0 | Cross/lengthwise grooves | 0520 | | 52�0 | Cross/lengthwise grooves |
| 0110 | | 11�0 | Cross/lengthwise grooves | 0320 | | 32�0 | Cross/lengthwise grooves | 0530 | | 53�0 | Cross/lengthwise grooves |
| 0120 | | 12�0 | Cross/lengthwise grooves | 0330 | | 33�0 | Cross/lengthwise grooves | 0540 | | 54�0 | Cross/lengthwise grooves |
| 0130 | | 13�0 | Cross/lengthwise grooves | 0340 | | 34�0 | Cross/lengthwise grooves | 0550 | | 55�0 | Cross/lengthwise grooves |
| 0140 | | 14�0 | Cross/lengthwise grooves | 0350 | | 35�0 | Cross/lengthwise grooves | 0560 | | 56�0 | Cross/lengthwise grooves |
| 0150 | | 15�0 | Cross/lengthwise grooves | 0360 | | 36�0 | Cross/lengthwise grooves | 0570 | | 57�0 | Cross/lengthwise grooves |
| 0160 | | 16�0 | Cross/lengthwise grooves | 0370 | | 37�0 | Cross/lengthwise grooves | 0580 | | 58�0 | Cross/lengthwise grooves |
| 0170 | | 17�0 | Cross/lengthwise grooves | 0380 | | 38�0 | Cross/lengthwise grooves | 0590 | | 59�0 | Cross/lengthwise grooves |
| 0180 | | 18�0 | Cross/lengthwise grooves | 0390 | | 39�0 | Cross/lengthwise grooves | 0600 | | 60�0 | Cross/lengthwise grooves |
| 0190 | | 19�0 | Cross/lengthwise grooves | 0400 | | 40�0 | Cross/lengthwise grooves | 0610 | | 61�0 | Cross/lengthwise grooves |
| 0200 | | 20�0 | Cross/lengthwise grooves | 0410 | | 41�0 | Cross/lengthwise grooves | 0620 | | 62�0 | Cross/lengthwise grooves |
| 0210 | | 21�0 | Cross/lengthwise grooves | 0420 | | 42�0 | Cross/lengthwise grooves | 0630 | | 63�0 | Cross/lengthwise grooves |
| 0220 | | 22�0 | Cross/lengthwise grooves | 0430 | | 43�0 | Cross/lengthwise grooves | 0640 | | 64�0 | Cross/lengthwise grooves |
| 0230 | | 23�0 | Cross/lengthwise grooves | 0440 | | 44�0 | Cross/lengthwise grooves | 0650 | | 65�0 | Cross/lengthwise grooves |
| 0240 | | 24�0 | Cross/lengthwise grooves | 0450 | | 45�0 | Cross/lengthwise grooves | — | — | — | — |
| 0250 | | 25�0 | Cross/lengthwise grooves | 0460 | | 46�0 | Cross/lengthwise grooves | — | — | — | — |
