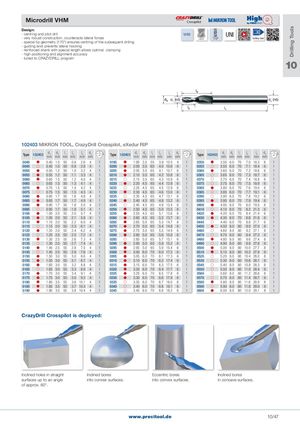

Microdrill VHM Crosspilot Drilling Tools Design: - centring and pilot drill - very robust construction, counteracts lateral forces VHM coated 170° UNI Cutting data - special tip geometry (170°) ensures centring of the subsequent drilling - guiding land prevents lateral hooking - reinforced shank with special length allows optimal clamping - high positioning and alignment accuracy - tuned to CRAZYDRILL program 10 d1 (k6) d2 (h6) 102403 MIKRON TOOL, CrazyDrill Crosspilot, eXedur RIP d1 d3 l1 l2 l4 d2 d1 d3 l1 l2 l4 d2 d1 d3 l1 l2 l4 d2 Type 102403 Type 102403 Type 102403 mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm 0040  0.40 1.0 50 0.8 2.6 4 1 0195  1.95 3.5 55 3.9 10.5 4 1 0350  3.50 6.0 70 7.0 18.3 6 1 0045  0.45 1.0 50 0.9 2.8 4 1 0200  2.00 3.5 65 4.0 10.6 6 1 0355  3.55 6.0 70 7.1 18.4 6 1 0050  0.50 1.2 50 1.0 3.2 4 1 0205  2.05 3.5 65 4.1 10.7 6 1 0360  3.60 6.0 70 7.2 18.6 6 1 0055  0.55 1.2 50 1.1 3.3 4 1 0210  2.10 3.5 65 4.2 10.8 6 1 0365  3.65 6.0 70 7.3 18.7 6 1 0060  0.60 1.5 50 1.2 4.0 4 1 0215  2.15 3.5 65 4.3 10.9 6 1 0370  3.70 6.0 70 7.4 18.8 6 1 0065  0.65 1.5 50 1.3 4.1 4 1 0220  2.20 4.5 65 4.4 12.8 6 1 0375  3.75 6.0 70 7.5 18.9 6 1 0070  0.70 1.5 50 1.4 4.2 4 1 0225  2.25 4.5 65 4.5 12.9 6 1 0380  3.80 6.0 70 7.6 19.0 6 1 0075  0.75 1.5 50 1.5 4.3 4 1 0230  2.30 4.5 65 4.6 13.0 6 1 0385  3.85 6.0 70 7.7 19.1 6 1 0080  0.80 1.7 50 1.6 4.8 4 1 0235  2.35 4.5 65 4.7 13.1 6 1 0390  3.90 6.0 70 7.8 19.2 6 1 0085  0.85 1.7 50 1.7 4.9 4 1 0240  2.40 4.5 65 4.8 13.2 6 1 0395  3.95 6.0 70 7.9 19.4 6 1 0090  0.90 1.7 50 1.8 5.0 4 1 0245  2.45 4.5 65 4.9 13.4 6 1 0400  4.00 6.0 70 8.0 19.5 6 1 0095  0.95 1.7 50 1.9 5.1 4 1 0250  2.50 4.5 65 5.0 13.5 6 1 0410  4.10 6.0 70 8.2 21.3 6 1 0100  1.00 2.0 55 2.0 5.7 4 1 0255  2.55 4.5 65 5.1 13.6 6 1 0420  4.20 6.0 70 8.4 21.4 6 1 0105  1.05 2.0 55 2.1 5.8 4 1 0260  2.60 4.5 65 5.2 13.7 6 1 0430  4.30 6.0 70 8.6 21.6 6 1 0110  1.10 2.0 55 2.2 6.0 4 1 0265  2.65 5.0 65 5.3 14.7 6 1 0440  4.40 6.0 70 8.8 21.7 6 1 0115  1.15 2.0 55 2.3 6.1 4 1 0270  2.70 5.0 65 5.4 14.8 6 1 0450  4.50 8.0 80 9.0 27.0 8 1 0120  1.20 2.0 55 2.4 6.2 4 1 0275  2.75 5.0 65 5.5 14.9 6 1 0460  4.60 8.0 80 9.2 27.1 8 1 0125  1.25 2.5 55 2.5 7.2 4 1 0280  2.80 5.0 65 5.6 15.0 6 1 0470  4.70 8.0 80 9.4 27.3 8 1 0130  1.30 2.5 55 2.6 7.3 4 1 0285  2.85 5.0 65 5.7 15.1 6 1 0480  4.80 8.0 80 9.6 27.4 8 1 0135  1.35 2.5 55 2.7 7.4 4 1 0290  2.90 5.0 65 5.8 15.2 6 1 0490  4.90 8.0 80 9.8 27.6 8 1 0140  1.40 2.5 55 2.8 7.5 4 1 0295  2.95 5.0 65 5.9 15.4 6 1 0500  5.00 8.0 80 10.0 27.7 8 1 0145  1.45 2.5 55 2.9 7.6 4 1 0300  3.00 6.0 70 6.0 17.2 6 1 0510  5.10 8.0 80 10.2 27.9 8 1 0150  1.50 3.0 55 3.0 8.6 4 1 0305  3.05 6.0 70 6.1 17.3 6 1 0520  5.20 8.0 80 10.4 28.0 8 1 0155  1.55 3.0 55 3.1 8.7 4 1 0310  3.10 6.0 70 6.2 17.4 6 1 0530  5.30 8.0 80 10.6 28.1 8 1 0160  1.60 3.0 55 3.2 8.8 4 1 0315  3.15 6.0 70 6.3 17.5 6 1 0540  5.40 8.0 80 10.8 28.3 8 1 0165  1.65 3.0 55 3.3 8.9 4 1 0320  3.20 6.0 70 6.4 17.7 6 1 0550  5.50 8.0 80 11.0 28.4 8 1 0170  1.70 3.0 55 3.4 9.1 4 1 0325  3.25 6.0 70 6.5 17.8 6 1 0560  5.60 8.0 80 11.2 28.6 8 1 0175  1.75 3.0 55 3.5 9.2 4 1 0330  3.30 6.0 70 6.6 17.9 6 1 0570  5.70 8.0 80 11.4 28.7 8 1 0180  1.80 3.5 55 3.6 10.1 4 1 0335  3.35 6.0 70 6.7 18.0 6 1 0580  5.80 8.0 80 11.6 28.9 8 1 0185  1.85 3.5 55 3.7 10.3 4 1 0340  3.40 6.0 70 6.8 18.1 6 1 0590  5.90 8.0 80 11.8 29.0 8 1 0190  1.90 3.5 55 3.8 10.4 4 1 0345  3.45 6.0 70 6.9 18.2 6 1 0600  6.00 8.0 80 12.0 29.1 8 1 CrazyDrill Crosspilot is deployed: Inclined holes in straight Inclined bores Eccentric bores Inclined bores surfaces up to an angle into convex surfaces. into convex surfaces. in concave surfaces. of approx. 60°. www.precitool.de 10/47
