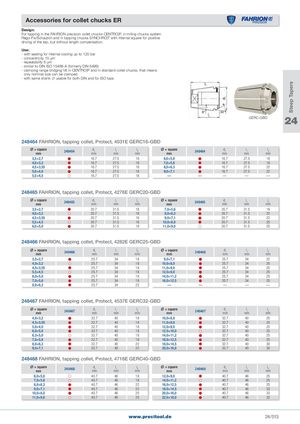

For tapping in the FAHRION precision collet chucks CENTRO|P, in milling chucks system Rego-Fix/Schaublin and in tapping chucks SYNCHRO|T with internal square for positive driving of the tap, but without length compensation.
Use: - with sealing for internal cooling up to 120 bar - concentricity 10 µm - repeatability 6 µm - similar to DIN ISO 15488-A (formerly DIN 6499) - clamping range bridging h8 in CENTRO|P and in standard collet chucks, that means only nominal size can be clamped - with same shank usable for both DIN and for ISO taps
l 24 2 GERC-GBD
248464 FAHRION, tapping collet, Protect, 4031E GERC16-GBD
| × square mm | 248464 | d1 mm | l1 mm | l2 mm | × square mm | 248464 | d1 mm | l1 mm | l2 mm |
| 3,5×2,7 | | 16�7 | 27�5 | 18 | 6,0×5,0 | | 16�7 | 27�5 | 18 |
| 4,0×3,2 | | 16�7 | 27�5 | 18 | 7,0×5,6 | | 16�7 | 27�5 | 18 |
| 4,5×3,55 | | 16�7 | 27�5 | 18 | 8,0×6,3 | | 16�7 | 27�5 | 22 |
| 5,0×4,0 | | 16�7 | 27�5 | 18 | 9,0×7,1 | | 16�7 | 27�5 | 22 |
| 5,5×4,5 | | 16�7 | 27�5 | 18 | — | — | — | — | — |
248465 FAHRION, tapping collet, Protect, 4276E GERC20-GBD
| × square mm | 248465 | d1 mm | l1 mm | l2 mm | × square mm | 248465 | d1 mm | l1 mm | l2 mm |
| 3,5×2,7 | | 20�7 | 31�5 | 18 | 7,0×5,6 | | 20�7 | 31�5 | 18 |
| 4,0×3,2 | | 20�7 | 31�5 | 18 | 8,0×6,3 | | 20�7 | 31�5 | 22 |
| 4,5×3,55 | | 20�7 | 31�5 | 18 | 9,0×7,1 | | 20�7 | 31�5 | 22 |
| 5,5×4,5 | | 20�7 | 31�5 | 18 | 10,0×8,0 | | 20�7 | 31�5 | 25 |
| 6,0×5,0 | | 20�7 | 31�5 | 18 | 11,0×9,0 | | 20�7 | 31�5 | 25 |
248466 FAHRION, tapping collet, Protect, 4282E GERC25-GBD
| × square mm | 248466 | d1 mm | l1 mm | l2 mm | × square mm | 248466 | d1 mm | l1 mm | l2 mm |
| 3,5×2,7 | | 25�7 | 34 | 18 | 9,0×7,1 | | 25�7 | 34 | 22 |
| 4,0×3,2 | | 25�7 | 34 | 18 | 10,0×8,0 | | 25�7 | 34 | 25 |
| 4,5×3,55 | | 25�7 | 34 | 18 | 11,0×9,0 | | 25�7 | 34 | 25 |
| 5,5×4,5 | | 25�7 | 34 | 18 | 12,0×9,0 | | 25�7 | 34 | 25 |
| 6,0×5,0 | | 25�7 | 34 | 18 | 14,0×11,2 | | 25�7 | 34 | 25 |
| 7,0×5,6 | | 25�7 | 34 | 18 | 16,0×12,5 | | 25�7 | 34 | 25 |
| 8,0×6,3 | | 25�7 | 34 | 22 | — | — | — | — | — |
248467 FAHRION, tapping collet, Protect, 4537E GERC32-GBD
| × square mm | 248467 | d1 mm | l1 mm | l2 mm | × square mm | 248467 | d1 mm | l1 mm | l2 mm |
| 4,0×3,2 | | 32�7 | 40 | 18 | 10,0×8,0 | | 32�7 | 40 | 25 |
| 4,5×3,55 | | 32�7 | 40 | 18 | 11,0×9,0 | | 32�7 | 40 | 25 |
| 5,0×4,0 | | 32�7 | 40 | 18 | 12,0×9,0 | | 32�7 | 40 | 25 |
| 6,0×5,0 | | 32�7 | 40 | 18 | 12,5×10,0 | | 32�7 | 40 | 25 |
| 6,3×5,0 | | 32�7 | 40 | 18 | 14,0×11,2 | | 32�7 | 40 | 25 |
| 7,0×5,6 | | 32�7 | 40 | 18 | 16,0×12,5 | | 32�7 | 40 | 25 |
| 8,0×6,3 | | 32�7 | 40 | 22 | 18,0×14,5 | | 32�7 | 40 | 30 |
| 9,0×7,1 | | 32�7 | 40 | 22 | 20,0×16,0 | | 32�7 | 40 | 30 |
248468 FAHRION, tapping collet, Protect, 4716E GERC40-GBD
| × square mm | 248468 | d1 mm | l1 mm | l2 mm | × square mm | 248468 | d1 mm | l1 mm | l2 mm |
| 6,0×5,0 | | 40�7 | 46 | 18 | 12,0×9,0 | | 40�7 | 46 | 25 |
| 7,0×5,6 | | 40�7 | 46 | 18 | 14,0×11,2 | | 40�7 | 46 | 25 |
| 8,0×6,3 | | 40�7 | 46 | 22 | 16,0×12,5 | | 40�7 | 46 | 25 |
| 9,0×7,1 | | 40�7 | 46 | 22 | 18,0×14,5 | | 40�7 | 46 | 33 |
| 10,0×8,0 | | 40�7 | 46 | 25 | 20,0×16,0 | | 40�7 | 46 | 33 |
| 11,0×9,0 | | 40�7 | 46 | 25 | 22,0×18,0 | | 40�7 | 46 | 33 |
