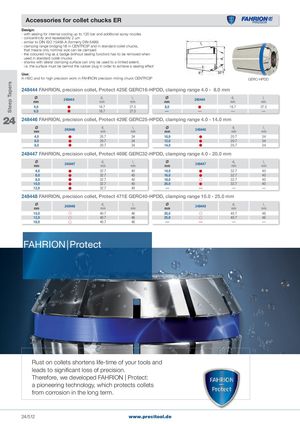

Steep Tapers Accessories for collet chucks ER Design: - with sealing for internal cooling up to 120 bar and additional spray nozzles - concentricity and repeatability 2 μm - similar to DIN ISO 15488-A (formerly DIN 6499) - clamping range bridging h8 in CENTRO|P and in standard collet chucks, that means only nominal size can be clamped - the coloured ring as a badge (without sealing function) has to be removed when used in standard collet chucks - shanks with lateral clamping surface can only be used to a limited extent, i.e. the surface must be behind the rubber plug in order to achieve a sealing effect Use: In HSC and for high precision work in FAHRION precision milling chuck CENTRO|P GERC-HPDD 248444 FAHRION, precision collet, Protect 425E GERC16-HPDD, clamping range 4.0 - 8.0 mm Xmm 248444 d 1mm l 1mm Xmm 248444 d 1mm l 1mm 4,0  16.7 27.5 8,0  16.7 27.5 6,0  16.7 27.5 — — — — 24 248446 FAHRION, precision collet, Protect 429E GERC25-HPDD, clamping range 4.0 - 14.0 mm Xmm 248446 d1mm l1mm Xmm 248446 d1mm l1mm 4,0  20.7 34 10,0  20.7 34 6,0  20.7 34 12,0  20.7 34 8,0  20.7 34 14,0  20.7 34 248447 FAHRION, precision collet, Protect 469E GERC32-HPDD, clamping range 4.0 - 20.0 mm Xmm 248447 d1mm l1mm Xmm 248447 d1mm l1mm 4,0  32.7 40 14,0  32.7 40 6,0  32.7 40 16,0  32.7 40 8,0  32.7 40 18,0  32.7 40 10,0  32.7 40 20,0  32.7 40 12,0  32.7 40 — — — — 248448 FAHRION, precision collet, Protect 471E GERC40-HPDD, clamping range 10.0 - 25.0 mm Xmm 248448 d1mm l1mm Xmm 248448 d1mm l1mm 10,0  40.7 46 20,0  40.7 46 12,0  40.7 46 25,0  40.7 46 16,0  40.7 46 — — — — FAHRION | Protect Rust on collets shortens life-time of your tools and leads to significant loss of precision. Therefore, we developed FAHRION | Protect: a pioneering technology, which protects collets from corrosion in the long term. 24/512 www.precitool.de
