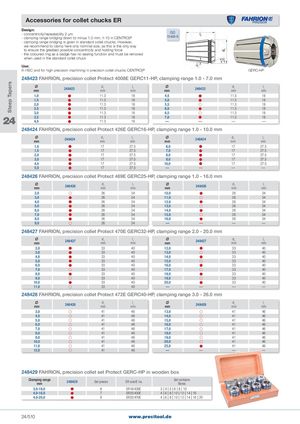

- concentricity/repeatability 2 µm ISO - clamping range bridging down to minus 1.0 mm, h 10 in CENTRO|P 15488-B - clamping range bridging is given in standard collet chucks. However, we recommend to clamp here only nominal size, as this is the only way to ensure the greatest possible concentricity and holding force - the coloured ring as a badge has no sealing function and must be removed when used in the standard collet chuck
Use: In HSC and for high precision machining in precision collet chucks CENTRO|P GERC-HP
248423 FAHRION, precision collet Protect 4008E GERC11-HP, clamping range 1.0 - 7.0 mm
| mm | 248423 | d1 mm | l1 mm | mm | 248423 | d1 mm | l1 mm |
| 1,0 | | 11�3 | 18 | 4,5 | | 11�3 | 18 |
| 1,5 | | 11�3 | 18 | 5,0 | | 11�3 | 18 |
| 2,0 | | 11�3 | 18 | 5,5 | | 11�3 | 18 |
| 2,5 | | 11�3 | 18 | 6,0 | | 11�3 | 18 |
| 3,0 | | 11�3 | 18 | 6,5 | | 11�3 | 18 |
| 3,5 | | 11�3 | 18 | 7,0 | | 11�3 | 18 |
| 4,0 | | 11�3 | 18 | — | — | — | — |
248424 FAHRION, precision collet Protect 426E GERC16-HP, clamping range 1.0 - 10.0 mm
| mm | 248424 | d1 mm | l1 mm | mm | 248424 | d1 mm | l1 mm |
| 1,0 | | 17 | 27�5 | 6,0 | | 17 | 27�5 |
| 1,5 | | 17 | 27�5 | 7,0 | | 17 | 27�5 |
| 2,0 | | 17 | 27�5 | 8,0 | | 17 | 27�5 |
| 3,0 | | 17 | 27�5 | 9,0 | | 17 | 27�5 |
| 4,0 | | 17 | 27�5 | 10,0 | | 17 | 27�5 |
| 5,0 | | 17 | 27�5 | — | — | — | — |
248426 FAHRION, precision collet Protect 469E GERC25-HP, clamping range 1.0 - 16.0 mm
| mm | 248426 | d1 mm | l1 mm | mm | 248426 | d1 mm | l1 mm |
| 2,0 | | 26 | 34 | 10,0 | | 26 | 34 |
| 3,0 | | 26 | 34 | 11,0 | | 26 | 34 |
| 4,0 | | 26 | 34 | 12,0 | | 26 | 34 |
| 5,0 | | 26 | 34 | 13,0 | | 26 | 34 |
| 6,0 | | 26 | 34 | 14,0 | | 26 | 34 |
| 7,0 | | 26 | 34 | 15,0 | | 26 | 34 |
| 8,0 | | 26 | 34 | 16,0 | | 26 | 34 |
| 9,0 | | 26 | 34 | — | — | — | — |
248427 FAHRION, precision collet Protect 470E GERC32-HP, clamping range 2.0 - 20.0 mm
| mm | 248427 | d1 mm | l1 mm | mm | 248427 | d1 mm | l1 mm |
| 2,0 | | 33 | 40 | 12,0 | | 33 | 40 |
| 3,0 | | 33 | 40 | 13,0 | | 33 | 40 |
| 4,0 | | 33 | 40 | 14,0 | | 33 | 40 |
| 5,0 | | 33 | 40 | 15,0 | | 33 | 40 |
| 6,0 | | 33 | 40 | 16,0 | | 33 | 40 |
| 7,0 | | 33 | 40 | 17,0 | | 33 | 40 |
| 8,0 | | 33 | 40 | 18,0 | | 33 | 40 |
| 9,0 | | 33 | 40 | 19,0 | | 33 | 40 |
| 10,0 | | 33 | 40 | 20,0 | | 33 | 40 |
| 11,0 | | 33 | 40 | — | — | — | — |
248428 FAHRION, precision collet Protect 472E GERC40-HP, clamping range 3.0 - 26.0 mm
| mm | 248428 | d1 mm | l1 mm | mm | 248428 | d1 mm | l1 mm |
| 3,0 | | 41 | 46 | 13,0 | | 41 | 46 |
| 4,0 | | 41 | 46 | 14,0 | | 41 | 46 |
| 5,0 | | 41 | 46 | 15,0 | | 41 | 46 |
| 6,0 | | 41 | 46 | 16,0 | | 41 | 46 |
| 7,0 | | 41 | 46 | 17,0 | | 41 | 46 |
| 8,0 | | 41 | 46 | 18,0 | | 41 | 46 |
| 9,0 | | 41 | 46 | 19,0 | | 41 | 46 |
| 10,0 | | 41 | 46 | 20,0 | | 41 | 46 |
| 11,0 | | 41 | 46 | 25,0 | | 41 | 46 |
| 12,0 | | 41 | 46 | — | — | — | — |
248429 FAHRION, precision collet set Protect GERC-HP in wooden box
| Clamping range mm | 248429 | Set pieces | ER size/E no� | Set contains Bores |
| 3,0-10,0 | | 6 | ER16/426E | 3 | 4 | 5 | 6 | 8 | 10 |
| 4,0-16,0 | | 7 | ER25/430E | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| 4,0-20,0 | | 8 | ER32/470E | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
