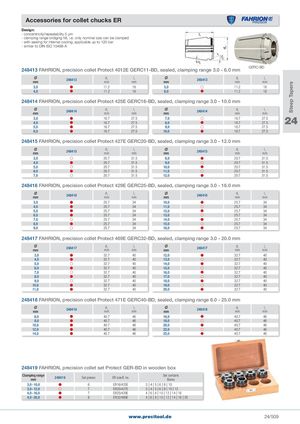

Общий каталог PRECITOOL - страница 514

Steep Tapers Accessories for collet chucks ER Design: - concentricity/repeatability 5 μm - clamping range bridging h8, i.e. only nominal size can be clamped - with sealing for internal cooling, applicable up to 120 bar - similar to DIN ISO 15488-A 248413 FAHRION, precision collet Protect 4012E GERC11-BD, sealed, clamping range 3.0 - 6.0 mm GERC-BD Xmm 248413 d1 l1 Xmmmmmm 248413 d1 l1mmmm 3,0  11.2 18 5,0  11.2 18 4,0  11.2 18 6,0  11.2 18 248414 FAHRION, precision collet Protect 425E GERC16-BD, sealed, clamping range 3.0 - 10.0 mm Xmm 248414 d1 l1 Xmmmmmm 248414 d1 l1mmmm 3,04,0  16.7 27.5 7,016.727.58,0  16.716.7 27.527.5 24 5,0  16.7 27.5 9,0  16.7 27.5 6,0  16.7 27.5 10,0  16.7 27.5 248415 FAHRION, precision collet Protect 427E GERC20-BD, sealed, clamping range 3.0 - 12.0 mm Xmm 248415 d1 l1 Xmmmmmm 248415 d1 l1mmmm 3,0  20.7 31.5 8,0  20.7 31.5 4,0  20.7 31.5 9,0  20.7 31.5 5,0  20.7 31.5 10,0  20.7 31.5 6,0  20.7 31.5 11,0  20.7 31.5 7,0  20.7 31.5 12,0  20.7 31.5 248416 FAHRION, precision collet Protect 429E GERC25-BD, sealed, clamping range 3.0 - 16.0 mm Xmm 248416 d1 l1 Xmmmmmm 248416 d1 l1mmmm 3,0  25.7 34 10,0  25.7 34 4,0  25.7 34 11,0  25.7 34 5,0  25.7 34 12,0  25.7 34 6,0  25.7 34 13,0  25.7 34 7,0  25.7 34 14,0  25.7 34 8,0  25.7 34 15,0  25.7 34 9,0  25.7 34 16,0  25.7 34 248417 FAHRION, precision collet Protect 469E GERC32-BD, sealed, clamping range 3.0 - 20.0 mm Xmm 248417 d l1 1 Xmmmmmm 248417 d l1 1mmmm 3,0  32.7 40 12,0  32.7 40 4,0  32.7 40 13,0  32.7 40 5,0  32.7 40 14,0  32.7 40 6,0  32.7 40 15,0  32.7 40 7,0  32.7 40 16,0  32.7 40 8,0  32.7 40 17,0  32.7 40 9,0  32.7 40 18,0  32.7 40 10,0  32.7 40 19,0  32.7 40 11,0  32.7 40 20,0  32.7 40 248418 FAHRION, precision collet Protect 471E GERC40-BD, sealed, clamping range 6.0 - 25.0 mm Xmm 248418 d1 l1 Xmmmmmm 248418 d1 l1mmmm 6,0  40.7 46 16,0  40.7 46 8,0  40.7 46 18,0  40.7 46 10,0  40.7 46 20,0  40.7 46 12,0  40.7 46 22,0  40.7 46 14,0  40.7 46 25,0  40.7 46 248419 FAHRION, precision collet set Protect GER-BD in wooden box Clamping rangemm 248419 Set pieces ER size/E no. Set containsBores 3,0 - 10,0  6 ER16/425E 3 | 4 | 5 | 6 | 8 | 10 3,0 - 12,0  7 ER20/427E 3 | 4 | 5 | 6 | 8 | 10 | 12 4,0 - 16,0  7 ER25/429E 4 | 6 | 8 | 10 | 12 | 14 | 16 4,0 - 20,0  8 ER32/469E 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 www.precitool.de 24/509
