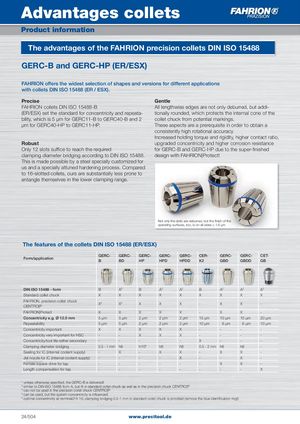

Advantages collets
The advantages of the FAHRION precision collets DIN ISO 15488
GERC-B and GERC-HP (ER/ESX)
FAHRION offers the widest selection of shapes and versions for different applications
with collets DIN ISO 15488 (ER / ESX).
| Precise | Gentle |
| FAHRION collets DIN ISO 15488-B | All lengthwise edges are not only deburred, but addi- |
| (ER/ESX) set the standard for concentricity and repeata- | tionally rounded, which protects the internal cone of the |
| bility, which is 5 µm for GERC11-B to GERC40-B and 2 | collet chuck from potential markings. |
| µm for GERC40-HP to GERC11-HP. | These aspects are a prerequisite in order to obtain a |
| consistently high rotational accuracy. | |
| Increased holding torque and rigidity, higher contact ratio, | |
| Robust | upgraded concentricity and higher corrosion resistance |
| Only 12 slots suffice to reach the required | for GERC-B and GERC-HP due to the super-finished |
| clamping diameter bridging according to DIN ISO 15488. | design with FAHRION|Protect! |
This is made possible by a steel specially customized for us and a specially attuned hardening process. Compared to 16-slotted collets, ours are substantially less prone to entangle themselves in the lower clamping range.
Not only the slots are deburred, but the finish of the operating surfaces, too, is on all sides ≤ 1.6 µm
The features of the collets DIN ISO 15488 (ER/ESX)
| Form/application | GERC- B | GERC- BD | GERC- HP | GERC- HPD | GERC- HPDD | CER- K2 | GERC- GBD | GERC- GBDD | CET- GB | |
| DIN ISO 15488 - form | B | A2 | B | A2 | A2 | B | A2 | A2 | A3 | |
| Standard collet chuck | X | X | X | X | X | X | X | X | X | |
| FAHRION, precision collet chuck CENTRO | P | X4 | X4 | X | X | X | - | X | X | - |
| FAHRION | Protect | X | X | X | X | X | - | X | X | - |
| Concentricitye.g.12.0 mm | 5µm | 5µm | 2µm | 2µm | 2µm | 15µm | 10µm | 10µm | 20µm | |
| Repeatability | 5µm | 5µm | 2µm | 2µm | 2µm | 10µm | 6µm | 6µm | 10µm | |
| Concentricityimportant | X | X | X | X | X | - | - | - | - | |
| Concentricityveryimportant for HSC | - | - | X | X | X | - | - | - | - | |
| Concentricity/tool life rather secondary | - | - | - | - | - | X | - | - | - | |
| Clampingdiameter bridging | 0.5 - 1 mm | h8 | h105 | h8 | h8 | 0.5 - 2 mm | h8 | h8 | - | |
| Sealingfor IC(internal coolant supply) | - | X | - | X | X | - | X | X | - | |
| Jet nozzle for IC(internal coolant supply) | - | - | - | - | X | - | - | X | - | |
| Standard Female square drive for tap | - | - | - | - | - | - | X | X | - | |
| Length compensation for tap | - | - | - | - | - | - | - | - | X |
1 unless otherwise specified, the GERC-B is delivered! 2 similar to DIN ISO 15488 form A, but fit in standard collet chuck as well as in the precision chuck CENTRO|P 3 can not be used in the precision collet chuck CENTRO|P 4 can be used, but the system concentricity is influenced 5 optimal concentricity at nominal h 10, clamping bridging 0.5-1 mm in standard collet chuck is provided (remove the blue identification ring!)
