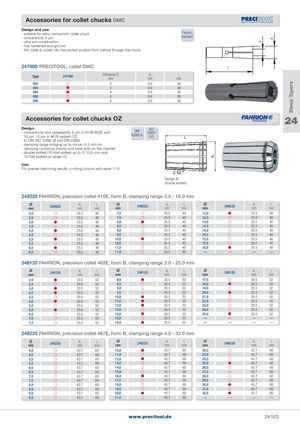

Общий каталог PRECITOOL - страница 508

ø d1 Steep Tapers Accessories for collet chucks DMC Design and use: - suitable for extra narrow/slim collet chuck Factory - concentricity 5 μm standard - ultra slim construction - fully hardened and ground - the collet is pulled into the correct position from behind through the chuck 247900 PRECITOOL, collet DMC l1 Type 247900 Clamping x d l1 1mmmmmm 002  2 9.6 36 003  3 9.6 36 004  4 9.6 36 005  5 9.6 36 006  6 9.6 36 Accessories for collet chucks OZ 24 Design:- concentricity and repeatability 6 μm in 415E/462E and10 μm / 6 μm in 467E system OZDIN6388 BISO10897(OZ) - to DIN ISO 10897-B (old DIN 6388) - clamping range bridging up to minus -0.5 mm for clamping cylindrical shanks and twist drills on the chamfer - double slotted (10-fold slotted up to x 10.0 mm and 12-fold slotted on larger x) Use: For precise machining results in milling chucks with taper 1:10 Design B: double slotted 248020 FAHRION, precision collet 415E, form B, clamping range 2.0 - 16.0 mm Xmm 248020 d1 l1 Xmmmmmm 248020 d1 l1 Xmmmmmm 248020 d1 l1mmmm 2,0  25.5 40   7,0  25.5 40 12,0  25.5 40 2,5  25.5 40   7,5  25.5 40 12,5  25.5 40 3,0  25.5 40   8,0  25.5 40 13,0  25.5 40 3,5  25.5 40   8,5  25.5 40 13,5  25.5 40 4,0  25.5 40   9,0  25.5 40 14,0  25.5 40 4,5  25.5 40   9,5  25.5 40 14,5  25.5 40 5,0  25.5 40 10,0  25.5 40 15,0  25.5 40 5,5  25.5 40 10,5  25.5 40 15,5  25.5 40 6,0  25.5 40 11,0  25.5 40 16,0  25.5 40 6,5  25.5 40 11,5  25.5 40 — — — — 248120 FAHRION, precision collet 462E, form B, clamping range 2.0 - 25.0 mm Xmm 248120 d1 l1 Xmmmmmm 248120 d1 l1 Xmmmmmm 248120 d1 l1mmmm 2,0  35.5 52   8,0  35.5 52 17,0  35.5 52 2,5  35.5 52   8,5  35.5 52 18,0  35.5 52 3,0  35.5 52   9,0  35.5 52 19,0  35.5 52 4,0  35.5 52   9,5  35.5 52 20,0  35.5 52 4,5  35.5 52 10,0  35.5 52 21,0  35.5 52 5,0  35.5 52 11,0  35.5 52 22,0  35.5 52 5,5  35.5 52 12,0  35.5 52 23,0  35.5 52 6,0  35.5 52 13,0  35.5 52 24,0  35.5 52 6,5  35.5 52 14,0  35.5 52 25,0  35.5 52 7,0  35.5 52 15,0  35.5 52 — — — — 7,5  35.5 52 16,0  35.5 52 — — — — 248220 FAHRION, precision collet 467E, form B, clamping range 4.0 - 32.0 mm Xmm 248220 d1 l1 Xmmmmmm 248220 d1 l1 Xmmmmmm 248220 d1 l1mmmm 4,0  43.7 60 10,0  43.7 60 22,0  43.7 60 4,5  43.7 60 11,0  43.7 60 23,0  43.7 60 5,0  43.7 60 12,0  43.7 60 24,0  43.7 60 5,5  43.7 60 13,0  43.7 60 25,0  43.7 60 6,0  43.7 60 14,0  43.7 60 26,0  43.7 60 6,5  43.7 60 15,0  43.7 60 27,0  43.7 60 7,0  43.7 60 16,0  43.7 60 28,0  43.7 60 7,5  43.7 60 17,0  43.7 60 29,0  43.7 60 8,0  43.7 60 18,0  43.7 60 30,0  43.7 60 8,5  43.7 60 19,0  43.7 60 31,0  43.7 60 9,0  43.7 60 20,0  43.7 60 32,0  43.7 60 9,5  43.7 60 21,0  43.7 60 — — — — www.precitool.de 24/503
