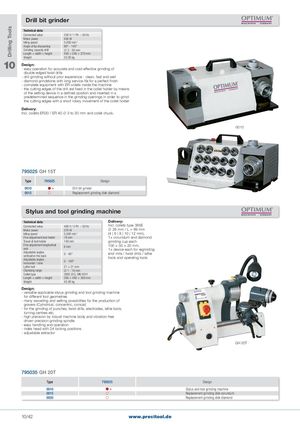

Drill bit grinder
| Technical data: | |
| Connected value | 230 V / 1 Ph ~ 50 Hz |
| Motor power | 450 W |
| Idling speed | 5,000 min-1 |
| Angle of tip sharpening | 90° - 145° |
| Grinding capacity drill | x3 - 30 mm |
| Length × width × height | 450 × 240 × 270 mm |
| Weight | 33�00 kg |
10 Weight 33�00 kg
Design: - easy operation for accurate and cost-effective grinding of double-edged twist drills - drill grinding without prior experience - clean, fast and well
- diamond grindstone with long service life for a perfect finish - complete equipment with ER collets inside the machine - the cutting edges of the drill are fixed in the collet holder by means of the setting device in a defined position and inserted in a predetermined sequence in the grinding openings in order to grind the cutting edges with a short rotary movement of the collet holder
Delivery: Incl. collets ER20 / ER 40 x 3 to 30 mm and collet chuck.
0010
795025 GH 15T
| Type | 795025 | Design |
| 0010 | + | Drill bit grinder |
| 0015 | | Replacement grinding disk diamond |
Stylus and tool grinding machine
| Technical data: | Delivery: | |||||
| Connected value | 400 V / 3 Ph ~ 50 Hz | Incl. collets type 385E | ||||
| Motor power | 370 W | x28 mm / L = 89 mm | ||||
| Idling speed | 5,000 min-1 | (4 | 6 | 8 | 10 | 12 mm), |
| Fine adjustment tool holder | 18 mm | 1× corundum and diamond | ||||
| Travel of tool holder | 140 mm | grinding cup each | ||||
| Fine adjustment longitudinal axis Adjustable angles vertical/on the back | 6 mm 0 - 40° | 100 × 50 × 20 mm, 1× device each for regrinding end mills / twist drills / lathe tl d ti tl | ||||
| Adjustable angles horizontal / cone | 0 - 180° | oos an operang oos | ||||
| Lathe tool | 21 × 21 mm | |||||
| Clamping range | x1 - 16 mm | |||||
| Collet type | 385E (5C), DIN 6341 | |||||
| Length × width × height | 350 × 450 × 350 mm | |||||
| Weight | 45�00 kg |
Design: - versatile applicable stylus grinding and tool grinding machine for different tool geometries - many swivelling and setting possibilities for the production of gravers (Cylindrical, concentric, conical) - for the grinding of punches, twist drills, electrodes, lathe tools, turning centres etc. - high precision by robust machine body and vibration-free driven precision grinding spindle - easy handling and operation - index head with 24 locking positions - adjustable extractor GH 20T
795035 GH 20T
| Type | 795035 | Design |
| 0010 | + | Stylus and tool grinding machine |
| 0015 | | Replacement grinding disk corundum |
| 0020 | | Replacement grinding disk diamond |
