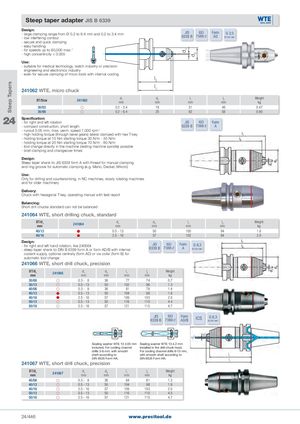

| - large clamping range from Ø 0.2 to 6.4 mm and 0.2 to 3.4 mm | JIS | ISO | Form | G 2,5 |
| - low interfering contour | 6339 B | 7388-2 | AD |
25.000 min-1 - secure and quick clamping - easy handling - for speeds up to 60,000 max.-1
- high concentricity < 0.005
Use: - suitable for medical technology, watch industry or precision engineering and electronics industry - even for secure clamping of micro tools with internal cooling
l
2
l
241062 WTE, micro chuck 1
| d | d | l | l | Weight | |||
| BT/Size | 241062 | 1 | 3 | 1 | 2 | ||
| mm | mm | mm | mm | kg | |||
| 30/03 | | 0�2 - 3�4 | 19 | 51 | 48 | 0�47 | |
| 30/06 | | 0�2 - 6�4 | 25 | 62 | 58 | 0�90 | |
| Specification: 24 |
| - for right and left rotation | JIS | ISO | Form |
| - compact construction, short length | 6339 B | 7388-2 | A |
- runout 0.05 mm, max. perm. speed 7,000 rpm-1 - high holding torque (through bevel gears) lateral clamped with hex T-key - holding torque at 15 Nm starting torque 30 N/m - 35 N/m - holding torque at 20 Nm starting torque 70 N/m - 80 N/m
- tool change directly in the machine (resting machine spindle) possible - brief clamping and changeover times
Design: Steep taper shank to JIS 6339 form A with thread for manual clamping and ring groove for automatic clamping (e.g. Maho, Deckel, Mikron)
Use: Only for drilling and countersinking, in NC machines, slowly rotating machines and for older machinery
Delivery: Chuck with hexagonal T-key, operating manual with test report
Balancing: Short drill chucks standard can not be balanced
241064 WTE, short drilling chuck, standard
| BT/d | d | d | l | l | Weight | ||
| 1 241064 | 1 | 3 | 1 | 2 | |||
| mm | mm | mm | mm | mm | kg | ||
| 40/13 | | 0�5 - 13 | 50 | 100 | 94 | 1�8 | |
| 40/16 | | 2�5 - 16 | 57 | 102 | 84 | 2�0 | |
| Design: |
| - for right and left hand rotation, like 240064 | JIS | ISO | Form | G 6,3 |
| - steep taper shank to DIN B 6339 form A or form AD/B with internal | 6339 B | 7388-2 | A | |
| 25.000 min-1 | ||||
| coolant supply, optional centrally (form AD) or via collar (form B) for | ||||
| automatic tool change | ||||
| 241066 WTE, short drill chuck, precision |
| BT/d | d | d | l | l | Weight | ||
| 1 241066 | 1 | 3 | 1 | 2 | |||
| mm | mm | mm | mm | mm | kg | ||
| 30/08 | | 0�3 - 8 | 36 | 77 | 74 | 0�7 | |
| 30/13 | | 0�5 - 13 | 50 | 102 | 96 | 1�3 | |
| 40/08 | | 0�3 - 8 | 36 | 81 | 78 | 1�4 | |
| 40/13 | | 0�5 - 13 | 50 | 104 | 98 | 1�8 | |
| 40/16 | | 2�5 - 16 | 57 | 109 | 103 | 2�0 | |
| 50/13 | | 0�5 - 13 | 50 | 116 | 110 | 4�4 | |
| 50/16 | | 2�5 - 16 | 57 | 121 | 115 | 4�7 |
| JIS | ISO | Form | ICS | G 6,3 |
| 6339 B | 7388-2 | AD/B |
25.000 min -1
Sealing washer WTE 13 2.05 mm Sealing washer WTE 13 4.2 mm included. For cooling channel installed in the drill chuck head. drills 3-6 mm, with smooth For cooling channel drills 6-13 mm,
| shaft according to | with smooth shaft according to | l | |
| 2 | |||
| DIN 6535 Form HA. | DIN 6535 Form HA. | l | |
| 241067 WTE, short drill chuck, precision | 1 |
| BT/d | d | d | l | l | Weight | ||
| 1 241067 | 1 | 3 | 1 | 2 | |||
| mm | mm | mm | mm | mm | kg | ||
| 40/08 | | 0�3 - 8 | 36 | 84 | 81 | 1�3 | |
| 40/13 | | 0�5 - 13 | 50 | 104 | 98 | 1�8 | |
| 40/16 | | 2�5 - 16 | 57 | 109 | 103 | 2�0 | |
| 50/13 | | 0�5 - 13 | 50 | 116 | 110 | 4�5 | |
| 50/16 | | 2�5 - 16 | 57 | 121 | 115 | 4�7 |
