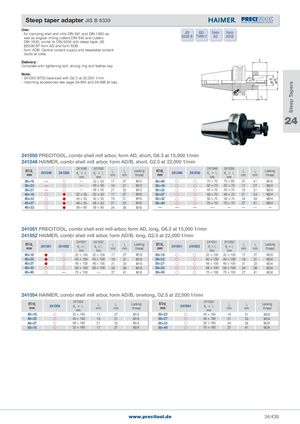

- for clamping shell end mills DIN 841 and DIN 1880 as	JIS	ISO	Form	Form
well as angular milling cutters DIN 842 and cutters	6339 B	7388-2	AD	AD/B

DIN 1830, similar to DIN 6358 with steep taper JIS B6339 BT form AD and form ADB - form ADB: Central coolant supply and resealable coolant ducts at collar

Delivery: 3 Complete with tightening bolt, driving ring and feather key

Note: - 241050 BT30 balanced with G2.5 at 25,000 1/min - matching accessories see page 24/495 and 24/496 et seq.

l l 1 2

24 241050 PRECITOOL, combi shell mill arbor, form AD, short, G6.3 at 15,000 1/min

241048 HAIMER, combi shell mill arbor, form AD/B, short, G2.5 at 22,000 1/min

BT/d1 mm	241048	241050	241048 d3× l1 mm	241050 d3× l1 mm	l2 mm	l3 mm	Locking thread	BT/d1 mm	241048	241050	241048 d3× l1 mm	241050 d3× l1 mm	l2 mm	l3 mm	Locking thread
30×16	—		—	32 × 50	17	27	M12	40×40			70 × 70	70 × 60	27	41	M16
30×22	—		—	40 × 50	19	31	M12	50×16			32 × 70	32 × 70	17	27	M24
30×27	—		—	48 × 55	21	33	M12	50×22			40 × 70	40 × 70	19	31	M24
40×16			32 × 55	32 × 55	17	27	M16	50×27			48 × 70	48 × 70	21	33	M24
40×22			40 × 55	40 × 55	19	31	M16	50×32			58 × 70	58 × 70	24	38	M24
40×27			48 × 55	48 × 55	21	33	M16	50×40			70 × 70	70 × 70	27	41	M24
40×32			58 × 60	58 × 60	24	38	M16	—	—	—	—	—	—	—	—

241051 PRECITOOL, combi shell end mill arbor, form AD, long, G6.3 at 15,000 1/min

241052 HAIMER, combi shell mill arbor, form AD/B, long, G2.5 at 22,000 1/min

BT/d1 mm	241051	241052	241051 d3× l1 mm	241052 d3× l1 mm	l2 mm	l3 mm	Locking thread	BT/d1 mm	241051	241052	241051 d3× l1 mm	241052 d3× l1 mm	l2 mm	l3 mm	Locking thread
40×16			32 × 100	32 × 100	17	27	M16	50×16			32 × 100	32 × 100	17	27	M24
40×22			40 × 100	40 × 100	19	31	M16	50×22			40 × 100	40 × 100	19	31	M24
40×27			48 × 100	48 × 100	21	33	M16	50×27			48 × 100	48 × 100	21	33	M24
40×32			58 × 100	58 × 100	24	38	M16	50×32			58 × 100	58 × 100	24	38	M24
40×40		—	70 × 100	—	27	41	M16	50×40			70 × 100	70 × 100	27	41	M24

241054 HAIMER, combi shell mill arbor, form AD/B, overlong, G2.5 at 22,000 1/min

BT/d1 mm	241054	241054 d3× l1 mm	l2 mm	l3 mm	Locking thread	BT/d1 mm	241054	241054 d3× l1 mm	l2 mm	l3 mm	Locking thread
40×16		32 × 160	17	27	M16	50×22		40 × 160	19	31	M24
40×22		40 × 160	19	31	M16	50×27		48 × 160	21	33	M24
40×27		48 × 160	21	33	M16	50×32		58 × 160	24	38	M24
50×16		32 × 160	17	27	M24	50×40		70 × 160	27	41	M24
