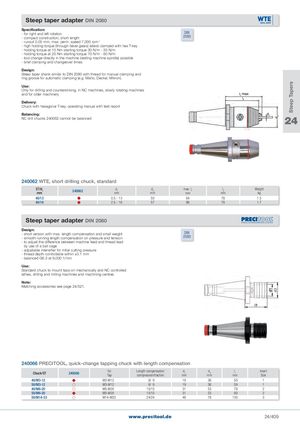

d3 Steep Tapers Steep taper adapter DIN 2080 Specification: - for right and left rotation DIN - compact construction, short length 2080 - runout 0.05 mm, max. perm. speed 7,000 rpm-1 - high holding torque (through bevel gears) lateral clamped with hex T-key - holding torque at 15 Nm starting torque 30 N/m - 35 N/m - holding torque at 20 Nm starting torque 70 N/m - 80 N/m - tool change directly in the machine (resting machine spindle) possible - brief clamping and changeover times Design: Steep taper shank similar to DIN 2080 with thread for manual clamping and ring groove for automatic clamping (e.g. Maho, Deckel, Mikron). Use: Only for drilling and countersinking, in NC machines, slowly rotating machines and for older machinery Delivery: Chuck with hexagonal T-key, operating manual with test report Balancing: NC drill chucks 240062 cannot be balanced 24 240062 WTE, short drilling chuck, standard ST/d1mm 240062 d1mm d3 max. l1 l2 Weightmmmmmmkg 40/13  0.5 - 13 50 84 78 1.5 40/16  2.5 - 16 57 86 78 1.7 Steep taper adapter DIN 2080 Design: - short version with max. length compensation and small weight- smooth-running length compensation on pressure and tensionDIN2080 - to adjust the difference between machine feed and thread lead by use of a ball cage - adjustable intensifier for initial cutting pressure - thread depth controllable within ±0.1 mm - balanced G6.3 at 8,000 1/min Use: Standard chuck to mount taps on mechanically and NC controlled lathes, drilling and milling machines and machining centres Note: Matching accessories see page 24/521. 240066 PRECITOOL, quick-change tapping chuck with length compensation Chuck/ST 240066 for Length compensation d1 d3 l1 InsertTapcompression/tractionmmmmmmSize 40/M3-12  M3-M12 9/ 9 19 36 50 1 50/M3-12  M3-M12 9/ 9 19 36 59 1 40/M6-20  M5-M20 15/15 31 53 78 2 50/M6-20  M5-M20 15/15 31 53 80 2 50/M14-33  M14-M33 24/24 48 78 130 3 www.precitool.de 24/409
