- made of case-hardening steel, all functional surfaces	For holding tools (milling cutters)	DIN	DIN
ground	with cylindrical shank and lateral	2080	6359
- tensile strength in the core of at least 800 N/mm²,	clamping surface to DIN 1835
hardened	(system Weldon).
- Vickers hardness min. HV 6300 N/mm² (min. 56 HRC)
- taper accuracy min. AT 3	Note:
- permissible concentricity deviation for direct tool mounting	SK50 without ring groove.
0.015 mm (measured at 3 × d), at the tool holder
240010 PRECITOOL, Weldon chuck, short,

ST/d		d	l	Locking	ST/d		d	l	Locking
	1 240010	3	1			1 240010	3	1
mm		mm	mm	thread	mm		mm	mm	thread
40/06		25	50	M16	50/06		25	50	M24
40/08		28	50	M16	50/08		28	50	M24
40/10		35	50	M16	50/10		35	63	M24
40/12		42	50	M16	50/12		42	63	M24
40/16		48	63	M16	50/16		48	63	M24
40/20		52	63	M16	50/20		52	63	M24
24 40/25		65	90	M16	50/25		65	80	M24
40/32		72	90	M16	50/32		72	85	M24

Design: DIN DIN - made of case-hardening steel, all functional surfaces ground 2080 6358

- tensile strength of min. 800 N/mm², hardened - Vickers hardness min. HV 6300 N/mm² (min. HRC 56) - taper accuracy min. AT 3 - steep taper ST 40 with ring groove

Use: For milling cutters with longitudinal or transversal groove.

Delivery: With tightening bolt, driving ring and feather key.

240050 PRECITOOL, combi shell end mill arbor, short

ST × d		d	l	l	l	Locking	ST × d		d	l	l	l	Locking
	1 240050	3	1	2	3			1 240050	3	1	2	3
mm		mm	mm	mm	mm	thread	mm		mm	mm	mm	mm	thread
40×16		32	52	17	27	M16	50×22		40	55	19	31	M24
40×22		40	52	19	31	M16	50×27		48	55	21	33	M24
40×27		48	52	21	33	M16	50×32		58	55	24	38	M24
40×32		58	52	24	38	M16	50×40		70	55	27	41	M24
50×16		32	55	17	27	M24	—	—	—	—	—	—	—

Design: DIN - for collets to DIN 6499 type ER/ESX 2080

- made of case-hardening steel, all functional surfaces ground - tensile strength of min. 800 N/mm², hardened - Vickers hardness min. HV 6300 N/mm² (min. HRC 56) - permissible runout of internal and external taper 0.01mm - taper accuracy min. AT 3 - steep taper ST 40 with ring groove

Use: For clamping tools with cylindrical shank.

Delivery: With clamping nut, without collets and spanners. Other sizes on request.

240030 PRECITOOL, collet chuck ER, short

ST/chucking range	240030	Clamping range mm	d3 mm	l1 mm	Locking thread	Fitting collets
40/16		1-16	42	70	M16	248559 (ER 25)
40/20		2-20	50	70	M16	248609 (ER 32)
40/26		3-30	63	70	M16	248659 (ER 40)
50/20		2-20	50	80	M24	248609 (ER 32)
50/26		3-30	63	80	M24	248659 (ER 40)
Design: - made of case-harde	ning steel, a	ll functional surfac	es ground			DIN 2080

- tensile strength in the core of at least 800 N/mm², hardened - Vickers hardness min. HV 6300 N/mm² (min. HRC 56) - taper accuracy to AT 3 - steep taper ST 40 with ring groove

Use: For holding morse taper tools with tang.

240060 PRECITOOL, intermediate sleeve, short, for MT with tang

ST × MT	240060	d3 mm	l1 mm	Locking thread	ST × MT	240060	d3 mm	l1 mm	Locking thread
40×2		32	50	M16	50×3		40	65	M24
40×3		40	65	M16	50×4		48	70	M24
40×4		48	95	M16	50×5		63	105	M24
50×2		32	60	M24	—	—	—	—	—

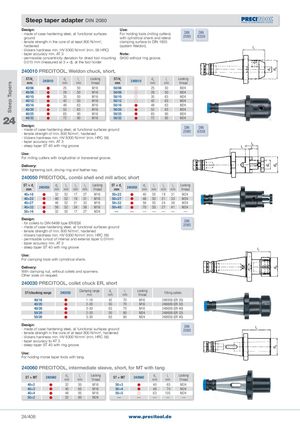

Общий каталог PRECITOOL - страница 413
