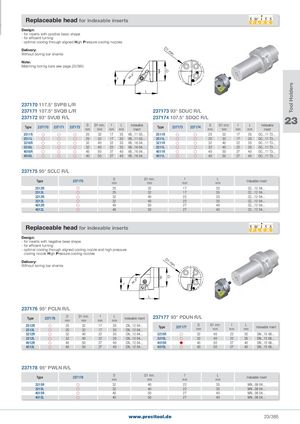

Replaceable head for indexable inserts
- for inserts with positive basic shape - for efficient turning - optimal cooling through aligned High Pressure cooling nozzles
Delivery: Without boring bar shanks
Note: Matching boring bars see page 23/380.
f xx.x°
237170 117.5° SVPB L/R
237171 107.5° SVQB L/R
237172 93° SVUB R/L
D1 min.
D
L
237173 93° SDUC R/L
237174 107.5° SDQC R/L 23
| Type | 237170 | 237171 | 237172 | D mm | D1 min� mm | f mm | L mm | Indexable insert | Type | 237173 | 237174 | D mm | D1 min� mm | f mm | L mm | Indexable insert |
| 2511R | | | | 25 | 32 | 17 | 35 | VB���11 03��� | 2511R | | | 25 | 32 | 17 | 35 | DC���11 T3��� |
| 2511L | | | | 25 | 32 | 17 | 35 | VB���11 03��� | 2511L | | | 25 | 32 | 17 | 35 | DC���11 T3��� |
| 3216R | | | | 32 | 40 | 22 | 35 | VB���16 04��� | 3211R | | | 32 | 40 | 22 | 35 | DC���11 T3��� |
| 3216L | | | | 32 | 40 | 22 | 35 | VB���16 04��� | 3211L | | | 32 | 40 | 22 | 35 | DC���11 T3��� |
| 4016R | | | | 40 | 50 | 27 | 40 | VB���16 04��� | 4011R | | | 40 | 50 | 27 | 40 | DC���11 T3��� |
| 4016L | | | | 40 | 50 | 27 | 40 | VB���16 04��� | 4011L | | | 40 | 50 | 27 | 40 | DC���11 T3��� |
237175 95° SCLC R/L
| Type | 237175 | D mm | D1 min� mm | f mm | L mm | Indexable insert |
| 2512R | | 25 | 32 | 17 | 35 | CC���12 04��� |
| 2512L | | 25 | 32 | 17 | 35 | CC���12 04��� |
| 3212R | | 32 | 40 | 22 | 35 | CC���12 04��� |
| 3212L | | 32 | 40 | 22 | 35 | CC���12 04��� |
| 4012R | | 40 | 50 | 27 | 40 | CC���12 04��� |
| 4012L | | 40 | 50 | 27 | 40 | CC���12 04��� |
Replaceable head for indexable inserts
Design: - for inserts with negative base shape - for efficient turning - optimal cooling through aligned cooling nozzle and high-pressure cooling nozzle High Pressure cooling nozzles
Delivery: Without boring bar shanks
f xx.x°
237176 95° PCLN R/L
L
D1 min.
D
| Type | 237176 | D mm | D1 min� mm | f mm | L mm Indexa | ble insert | 237177 | 93° PDU | N R/L | ||||
| 2512R | | 25 | 32 | 17 | 35 CN��� | 12 04��� | Type | 237177 | D | D1 min� | f | L | Indexable insert |
| 2512L | | 25 | 32 | 17 | 35 CN��� | 12 04��� | mm | mm | mm | mm | |||
| 3212R | | 32 | 40 | 22 | 35 CN��� | 12 04��� | 3215R | | 32 | 40 | 22 | 35 | DN���15 06��� |
| 3212L | | 32 | 40 | 22 | 35 CN��� | 12 04��� | 3215L | | 32 | 40 | 22 | 35 | DN���15 06��� |
| 4012R | | 40 | 50 | 27 | 40 CN��� | 12 04��� | 4015R | | 40 | 50 | 27 | 40 | DN���15 06��� |
| 4012L | | 40 | 50 | 27 | 40 CN��� | 12 04��� | 4015L | | 40 | 50 | 27 | 40 | DN���15 06��� |
237178 95° PWLN R/L
| Type | 237178 | D mm | D1 min� mm | f mm | L mm | Indexable insert |
| 3215R | | 32 | 40 | 22 | 35 | WN���08 04��� |
| 3215L | | 32 | 40 | 22 | 35 | WN���08 04��� |
| 4015R | | 40 | 50 | 27 | 40 | WN���08 04��� |
| 4015L | | 40 | 50 | 27 | 40 | WN���08 04��� |
