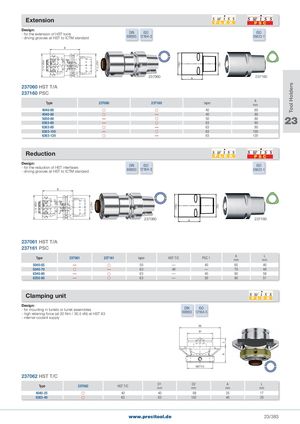

LA Tool Holders HSK A /C HSK A /C HST T/ A HST T / A PSC1 PSC1 PSC PSC Extension Design:- for the extension of HST tools- driving grooves at HST to ICTM standard DIN ISO6989312164-3 ISO26623-1 A 237060 A 237160 237060 HST T/A 237160 PSC Type 237060 237160 taper Amm 4040-60   40 60 4040-80  — 40 80 5050-80 —6363-60—  5063 8060 23 6363-80  — 63 80 6363-100 —  63 100 6363-120  — 63 120 Reduction Design:- for the reduction of HST interfaces- driving grooves at HST to ICTM standard DIN ISO6989312164-3 ISO26623-1 A 237060 A 237160 237061 HST T/A 237161 PSC Type 237061 237161 taper HST T/C PSC 1 Amm Lmm 5040-65 —  50 — 40 65 40 6340-70  — 63 40 — 70 44 6340-80 —  63 — 40 80 58 6350-80 —  63 — 50 80 51 Clamping unit Design:- for mounting in turrets or turret assemblies- high retaining force (at 20 Nm / 30.5 kN) at HST 63 DIN ISO6989312164-3 - internal coolant supply D2 D1 HST T/C 237062 HST T/C Type 237062 HST T/C D1mm D2mm Amm Lmm 4040-25  40 40 68 25 17 6363-40  63 63 102 40 20 www.precitool.de 23/383
