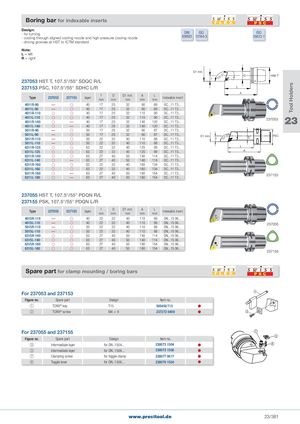

Общий каталог PRECITOOL - страница 386
Навигация
Boring bar for indexable inserts
- cooling through aligned cooling nozzle and high-pressure cooling nozzle 69893 12164-3 26623-1
- driving grooves at HST to ICTM standard Note: L = left R = right
| ° D1 min. | ||||||||||
| 37053 HS | T T, 107 | .5°/55° S | DQC | R/L | HSK T D f 107.5 | |||||
| 37153 PS | C, 107.5 | °/55° SD | HC L/ | R | L | |||||
| f | D | D1 min� | A | L | A | |||||
| Type | 237053 | 237153 | taper | mm | mm | mm | mm | mm | Indexable insert | |
| 4011R-90 | — | | 40 | 17 | 25 | 32 | 90 | 69 | DC���11 T3��� | |
| 4011L-90 | — | | 40 | 17 | 25 | 32 | 90 | 69 | DC���11 T3��� | |
| 4011R-110 | | | 40 | 17 | 25 | 32 | 110 | 90 | DC���11 T3��� | |
| 4011L-110 | | | 40 | 17 | 25 | 32 | 110 | 90 | DC���11 T3��� | 237053 |
| 4011R-140 | | — | 40 | 17 | 25 | 32 | 140 | 120 | DC���11 T3��� | |
| 4011L-140 | | — | 40 | 17 | 25 | 32 | 140 | 120 | DC���11 T3��� | |
| 5011R-90 | — | | 50 | 17 | 25 | 32 | 90 | 67 | DC���11 T3��� | |
| 5011L-90 | — | | 50 | 17 | 25 | 32 | 90 | 67 | DC���11 T3��� | 7.5° D1 min. PSC |
| 5011R-110 | — | | 50 | 22 | 32 | 40 | 110 | 88 | DC���11 T3��� | f 10 D |
| 5011L-110 | — | | 50 | 22 | 32 | 40 | 110 | 88 | DC���11 T3��� | |
| 6311R-125 | | | 63 | 22 | 32 | 40 | 125 | 99 | DC���11 T3��� | L |
| 6311L-125 | | | 63 | 22 | 32 | 40 | 125 | 99 | DC���11 T3��� | A |
| 6311R-140 | | | 63 | 27 | 40 | 50 | 140 | 114 | DC���11 T3��� | |
| 6311L-140 | | — | 63 | 27 | 40 | 50 | 140 | 114 | DC���11 T3��� | |
| 6311R-160 | | | 63 | 22 | 32 | 40 | 160 | 134 | DC���11 T3��� | |
| 6311L-160 | | | 63 | 22 | 32 | 40 | 160 | 134 | DC���11 T3��� | |
| 6311R-180 | | — | 63 | 27 | 40 | 50 | 180 | 154 | DC���11 T3��� | 237153 |
| 6311L-180 | | — | 63 | 27 | 40 | 50 | 180 | 154 | DC���11 T3��� | |
| 37055 HS 37155 PS | T T, 107 K, 107.5 | .5°/55° P °/55° PD | DQN QN L/ | R/L R f | D | D1 min | A | L | ||
| Type | 237055 | 237155 | taper | � | Indexable insert | |||||
| mm | mm | mm | mm | mm | ||||||
| 4015R-110 | — | | 40 | 22 | 32 | 40 | 110 | 89 | DN���15 06��� | |
| 4015L-110 | — | | 40 | 22 | 32 | 40 | 110 | 89 | DN���15 06��� | 237055 |
| 5015R-110 | — | | 50 | 22 | 32 | 40 | 110 | 88 | DN���15 06��� | |
| 5015L-110 | — | | 50 | 22 | 32 | 40 | 110 | 88 | DN���15 06��� | |
| 6315R-140 | | | 63 | 27 | 40 | 50 | 140 | 114 | DN���15 06��� | |
| 6315L-140 | | | 63 | 27 | 40 | 50 | 140 | 114 | DN���15 06��� | |
| 6315R-180 | | | 63 | 27 | 40 | 50 | 180 | 154 | DN���15 06��� | |
| 6315L-180 | | | 63 | 27 | 40 | 50 | 180 | 154 | DN���15 06��� | 237155 |
Spare part for clamp mounting / boring bars
| or 23705 | 3 and 237153 | 1 | |||
| Figure no. | Spare part | Design | Item no� | ||
| a | TORX®key | T15 | 505450 T15 | | |
| b | TORX®screw | M4 × 9 | 237272 0409 | | 2 |
| or 23705 | 5 and 237155 | 7 | |||
| Figure no. | Spare part | Design | Item no� | 3 | |
| c | Intermediate layer | for DN��1504��� | 238073 1504 | | 8 |
| c | Intermediate layer | for DN��1506��� | 238073 1506 | | |
| g | Clamping screw | for toggle clamp | 238077 0017 | | |
| h | Toggle lever | for DN��1506��� | 238078 1504 | |
