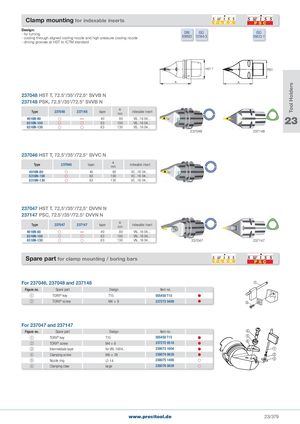

Общий каталог PRECITOOL - страница 384

Tool Holders Clamp mounting for indexable inserts Design:- for turning- cooling through aligned cooling nozzle and high-pressure cooling nozzle DIN ISO6989312164-3 ISO26623-1 - driving grooves at HST to ICTM standard HST T PSC A A 237048 HST T, 72.5°/35°/72.5° SVVB N 237148 PSK, 72.5°/35°/72.5° SVVB N Type 237048 237148 taper Amm Indexable insert 4016N-80  — 40 80 VB...16 04...6316N-10063100VB...16 04... 23 6316N-130   63 130 VB...16 04... 237048 237148 237046 HST T, 72.5°/35°/72.5° SVVC N Type 237046 taper Amm Indexable insert 4016N-80  40 80 VC...16 04... 6316N-100  63 100 VC...16 04... 6316N-130  63 130 VC...16 04... 237047 HST T, 72,5°/35°/72,5° DVVN N 237147 PSC, 72.5°/35°/72.5° DVVN N Type 237047 237147 taper Amm Indexable insert 4016N-80  — 40 80 VN...16 04... 6316N-100   63 100 VN...16 04... 6316N-130   63 130 VN...16 04... 237047 237147 Spare part for clamp mounting / boring bars For 237046, 237048 and 237148 1 Figure no. Spare part Design Item no. a TORX® key T15 505450 T15  b TORX® screw M4 × 9 237272 0409  2 For 237047 and 237147 Figure no. Spare part Design Item no. 4 a TORX® key T15 505450 T15  5 b TORX® screw M4 × 9 237272 0510  6 c Intermediate layer for VN..1604.. 238073 1604  1 d Clamping screw M6 × 28 238074 0628  2 e Nozzle ring x 14 238075 1400  3 f Clamping claw large 238076 0029  www.precitool.de 23/379
