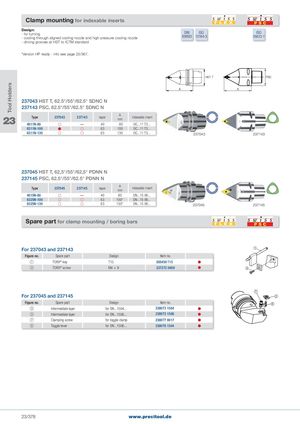

Общий каталог PRECITOOL - страница 383
Навигация
- cooling through aligned cooling nozzle and high-pressure cooling nozzle 69893 12164-3 26623-1
- driving grooves at HST to ICTM standard *Version HP ready - info see page 23/367.
237043 HST T, 62.5°/55°/62.5° SDNC N
237143 PSC, 62.5°/55°/62.5° SDNC N
23 A
| Type | 237043 | 237143 | taper | Indexable insert | ||
| mm | ||||||
| 4011N-80 | | — | 40 | 80 | DC���11 T3��� | |
| 6311N-100 | | | 63 | 100 | DC���11 T3��� | |
| 6311N-130 | | | 63 | 130 | DC���11 T3��� |
HST T PSC
A A
237043 237143
237045 HST T, 62,5°/55°/62,5° PDNN N
237145 PSC, 62.5°/55°/62.5° PDNN N
| Type | 237045 | 237145 | taper | A mm | Indexable insert | ||
| 4015N-80 | | — | 40 | 80 | DN���15 06��� | ||
| 6325N-100 | | | 63 | 100 | DN���15 06��� | ||
| 6325N-130 | | | 63 | 130 | DN���15 06��� | 237045 | 237145 |
Spare part for clamp mounting / boring bars
| or 23704 Figure no. a | 3 and 237143 Spare part TORX®key | Design T15 | Item no� 505450 T15 | | 1 |
| b | TORX®screw | M4 × 9 | 237272 0409 | | 2 |
| or 23704 | 5 and 237145 | 3 7 | |||
| Figure no. | Spare part | Design | Item no� | 8 | |
| c | Intermediate layer | for DN���1504��� | 238073 1504 | | |
| c | Intermediate layer | for DN���1506��� | 238073 1506 | | |
| g | Clamping screw | for toggle clamp | 238077 0017 | | |
| h | Toggle lever | for DN���1506��� | 238078 1504 | |
