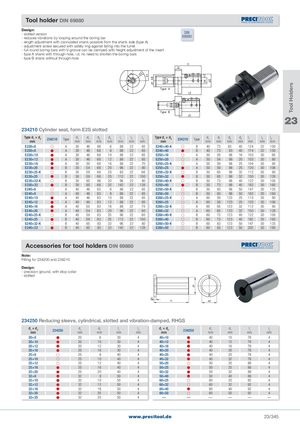

Общий каталог PRECITOOL

- slotted version DIN - reduces vibrations by looping around the boring bar 69880 - length adjustment with cannulated shank possible from the shank side (type A) - adjustment screw secured with safety ring against falling into the turret - full-round boring bars with V-groove can be clamped with height adjustment of the insert - type A shank with through-hole, i.d. no need to shorten the boring bars - type B shank without through-hole

23 234210 Cylinder seat, form E2S slotted

Type d1× d4 mm	234210	Type	d1 mm	d² mm	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	Type d1× d4 mm	234210	Type	d1 mm	d² mm	d3 mm	d4 mm	l1mm	l2 mm	l3mm
E230×6		A	30	46	68	6	88	22	65	E240×40-K		B	40	73	83	40	124	22	100
E230×8		A	30	46	68	8	88	22	65	E240×40		B	40	73	83	40	174	22	150
E230×10		A	30	46	68	10	88	22	65	E250×16		A	50	50	98	16	103	30	85
E230×12		A	30	46	68	12	88	22	65	E250×20		A	50	54	98	20	103	30	80
E230×16		A	30	50	68	16	88	22	70	E250×25-K		A	50	59	98	25	104	30	90
E230×20		B	30	54	68	20	96	22	80	E250×25		A	50	59	98	25	120	30	106
E230×25-K		B	30	59	68	25	83	22	66	E250×32-K		B	50	65	98	32	112	30	90
E230×25		B	30	59	68	25	112	22	100	E250×32		B	50	65	98	32	150	30	128
E230×32-K		B	30	65	68	32	96	22	80	E250×40-K		B	50	73	98	40	122	30	100
E230×32		B	30	65	68	32	142	22	128	E250×40		B	50	73	98	40	182	30	160
E240×6		A	40	46	83	6	88	22	65	E250×50-K		B	50	83	98	50	147	30	125
E240×8		A	40	46	83	8	88	22	65	E250×50		B	50	83	98	50	182	30	160
E240×10		A	40	46	83	10	88	22	65	E260×25-K		A	60	59	123	25	110	30	90
E240×12		A	40	46	83	12	88	22	65	E260×25		A	60	59	123	25	120	30	106
E240×16		A	40	50	83	16	88	22	70	E260×32-K		A	60	65	123	32	112	30	90
E240×20		A	40	54	83	20	96	22	80	E260×32		A	60	65	123	32	150	30	128
E240×25-K		B	40	59	83	25	96	22	80	E260×40-K		B	60	73	123	40	122	30	100
E240×25		B	40	59	83	25	112	22	100	E260×40		B	60	73	123	40	182	30	160
E240×32-K		B	40	65	83	32	96	22	80	E260×50-K		B	60	83	123	50	147	30	125
E240×32		B	40	65	83	32	142	22	128	E260×50		B	60	83	123	50	202	30	180

Accessories for tool holders DIN 69880

Note: Fitting for 234200 and 234210

Design: - precision ground, with stop collar - slotted

234250 Reducing sleeve, cylindrical, slotted and vibration-damped, RHGS

d1× d2 mm	234250	d1 mm	d² mm	l1 mm	l2 mm	d1× d2 mm	234250	d1 mm	d² mm	l1 mm	l2 mm
20×8		20	8	30	4	40×10		40	10	78	4
20×10		20	10	30	4	40×12		40	12	78	4
20×12		20	12	30	4	40×16		40	16	78	4
20×16		20	16	30	4	40×20		40	20	78	4
25×8		25	8	40	4	40×25		40	25	78	4
25×10		25	10	40	4	40×32		40	32	78	4
25×12		25	12	40	4	50×20		50	20	88	4
25×16		25	16	40	4	50×25		50	25	88	4
25×20		25	20	40	4	50×32		50	32	88	4
32×8		32	8	50	4	50×40		50	40	88	4
32×10		32	10	50	4	60×25		60	25	92	4
32×12		32	12	50	4	60×32		60	32	92	4
32×16		32	16	50	4	60×40		60	40	92	4
32×20		32	20	50	4	60×50		60	50	92	4
32×25		32	25	50	4	—	—	—	—	—	—
