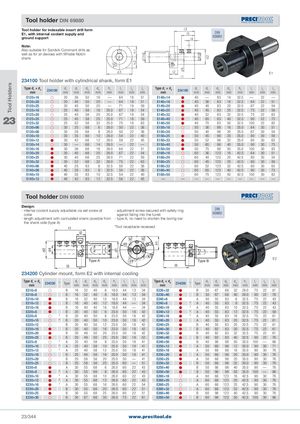

Tool holder for indexable insert drill form E1, with internal coolant supply and DIN ground support 69880

Note: Also suitable for Sandvik Coromant drills as well as for all devices with Whistle Notch shank

234100 Tool holder with cylindrical shank, form E1

Type d1× d4 mm	234100	d1 mm	d² mm	d3 mm	d4 mm	h1 mm	l1 mm	l2 mm	l3 mm	Type d1× d4 mm	234100	d1 mm	d² mm	d3 mm	d4 mm	h1 mm	l1 mm	l2 mm	l3 mm
E120×16		20	36	50	16	—	64	18	51	E140×14		40	—	83	14	32�5	—	22	—
E120×20		20	40	50	20	—	64	18	51	E140×16		40	36	83	16	32�5	64	22	51
E120×25		20	45	50	25	—	71	18	59	E140×20		40	40	83	20	32�5	67	22	54
E125×16		25	40	58	16	25�0	67	18	54	E140×25		40	45	83	25	32�5	75	22	59
E125×20		25	40	58	20	25�0	67	18	54	E140×32		40	52	83	32	32�5	75	22	63
E125×25		25	45	58	25	25�0	71	18	59	E140×40		40	65	83	40	32�5	90	22	73
E125×32		25	52	58	32	25�0	75	18	63	E140×50		40	70	83	50	32�5	100	22	83
E130×06		30	25	68	6	28�0	50	22	36	E150×16		50	36	98	16	35�0	64	30	51
E130×08		30	28	68	8	28�0	50	22	36	E150×20		50	40	98	20	35�0	67	30	54
E130×10		30	35	68	10	28�0	54	22	40	E150×25		50	45	98	25	35�0	80	30	59
E130×12		30	42	68	12	28�0	59	22	45	E150×32		50	52	98	32	35�0	80	30	63
E130×14		30	—	68	14	28�0	—	22	—	E150×40		50	65	98	40	35�0	90	30	73
E130×16		30	36	68	16	28�0	64	22	51	E150×50		50	75	98	50	35�0	100	30	83
E130×20		30	40	68	20	28�0	67	22	54	E160×16		60	36	123	16	42�5	64	30	51
E130×25		30	45	68	25	28�0	71	22	59	E160×20		60	40	123	20	42�5	80	30	54
E130×32		30	52	68	32	28�0	75	22	63	E160×25		60	45	123	25	42�5	80	30	59
E140×06		40	25	83	6	32�5	50	22	36	E160×32		60	52	123	32	42�5	80	30	63
E140×08		40	28	83	8	32�5	50	22	36	E160×40		60	65	123	40	42�5	90	30	73
E140×10		40	35	83	10	32�5	54	22	40	E160×50		60	75	123	50	42�5	100	30	83
E140×12		40	42	83	12	32�5	58	22	45	—	—	—	—	—	—	—	—	—	—

Tool holder DIN 69880

Design:

- internal coolant supply adjustable via set screw at	- adjustment screw secured with safety ring	DIN
collar	against falling into the turret	69880

- length adjustment with cannulated shank possible from - type A, no need to shorten the boring bar the shank side (type A) l1 *Tool receptacle recessed l2

E2 Type A Type B l3 l3

234200 Cylinder mount, form E2 with internal cooling

Type d1× d4 mm	234200	Type	d1 mm	d² mm	d3 mm	d4 mm	h1 mm	l1 mm	l2 mm	l3 mm	Type d1× d4 mm	234200	Type	d1 mm	d² mm	d3 mm	d4 mm	h1 mm	l1 mm	l2 mm	l3 mm
E216×6		B	16	32	40	6	18�0	44	13	34	E230×32		B	30	67	68	32	28�0	75	22	61
E216×8		B	16	32	40	8	18�0	44	13	34	E230×40		B	30	67	68	40	28�0	90	22	76
E216×10		B	16	32	40	10	18�0	44	13	34	E240×6		A	40	55	83	6	32�5	75	22	43
E216×12		B	16	40	40	12	18�0	44	—	34	E240×8		A	40	55	83	8	32�5	75	22	43
E216×16		B	16	40	40	16	18�0	44	—	34	E240×10		A	40	55	83	10	32�5	75	22	43
E220×6		B	20	40	50	6	23�0	50	18	42	E240×12		A	40	55	83	12	32�5	75	22	58
E220×8		B	20	40	50	8	23�0	50	18	42	E240×16		A	40	55	83	16	32�5	75	22	61
E220×10		B	20	40	50	10	23�0	50	18	42	E240×20		A	40	55	83	20	32�5	75	22	61
E220×12		B	20	40	50	12	23�0	50	18	42	E240×25		B	40	55	83	25	32�5	75	22	61
E220×16		B	20	40	50	16	23�0	50	18	42	E240×30		B	40	82	83	30	32�5	75	22	61
E220×20		B	20	49	50	20	23�0	50	18	42	E240×32		B	40	82	83	32	32�5	75	22	61
E220×25		B	20	49	50	25	23�0	60	18	52	E240×40		B	40	82	83	40	32�5	90	22	76
E225×8		A	25	40	58	8	25�0	50	18	41	E240×50		B	40	98	98	50	35�0	100	—	86
E225×10		A	25	40	58	10	25�0	50	18	41	E250×12		A	50	68	98	12	35�0	90	30	71
E225×12		A	25	40	58	12	25�0	50	18	41	E250×16		A	50	68	98	16	35�0	90	30	76
E225×16		B	25	40	58	16	25�0	50	18	41	E250×20		A	50	68	98	20	35�0	90	30	76
E225×20		B	25	58	58	20	25�0	50	—	41	E250×25		A	50	68	98	25	35�0	90	30	76
E225×25		B	25	58	58	25	25�0	60	—	51	E250×32		B	50	68	98	32	35�0	90	30	76
E230×6		A	30	55	68	6	28�0	60	22	43	E250×40		B	50	98	98	40	35�0	90	—	76
E230×8		A	30	55	68	8	28�0	60	22	43	E250×50		B	50	98	98	50	35�0	100	—	86
E230×10		A	30	55	68	10	28�0	60	22	43	E260×16		A	60	68	123	16	42�5	90	30	76
E230×12		A	30	55	68	12	28�0	60	22	43	E260×20		A	60	68	123	20	42�5	90	30	76
E230×16		A	30	55	68	16	28�0	60	22	54	E260×25		A	60	68	123	25	42�5	90	30	76
E230×20		B	30	55	68	20	28�0	60	22	51	E260×32		A	60	68	123	32	42�5	90	30	76
E230×25		B	30	55	68	25	28�0	60	22	51	E260×40		B	60	98	123	40	42�5	90	30	76
E230×30		B	30	67	68	30	28�0	75	22	61	E260×50		B	60	98	123	50	42�5	100	30	86
