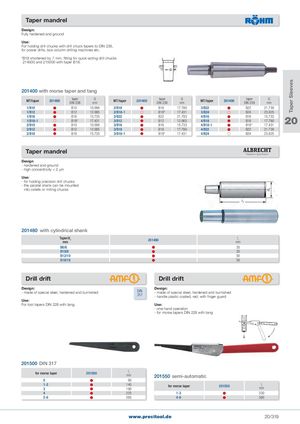

Taper mandrel
Fully hardened and ground
Use: For holding drill chucks with drill chuck tapers to DIN 238, for power drills, box-column drilling machines etc. * B18 shortened by 7 mm, fitting for quick-acting drill chucks 214500 and 215000 with taper B18.
201400 with morse taper and tang
| MT/taper | 201400 | taper DIN 238 | G mm | MT/taper | 201400 | taper DIN 238 | G mm | MT/taper | 201400 | taper DIN 238 | G mm |
| 1/B10 | | B10 | 10�094 | 2/B18 | | B18 | 17�780 | 3/B22 | | B22 | 21�739 |
| 1/B12 | | B12 | 12�065 | 2/B18-1 | | B18 | 17�431 | 3/B24 | | B24 | 23�825 |
| 1/B16 | | B16 | 15�733 | 2/B22 | | B22 | 21�793 | 4/B16 | | B16 | 15�733 |
| 1/B18-1 | | B18 | 17�431 | 3/B12 | | B12 | 12�065 | 4/B18 | | B18 | 17�780 |
| 2/B10 | | B10 | 10�094 | 3/B16 | | B16 | 15�733 | 4/B18-1 | | B18 | 17�431 |
| 2/B12 | | B12 | 12�065 | 3/B18 | | B18 | 17�780 | 4/B22 | | B22 | 21�739 |
| 2/B16 | | B16 | 15�733 | 3/B18-1 | | B18 | 17�431 | 4/B24 | | B24 | 23�825 |
Taper mandrel
Design - hardened and ground - high concentricity < 2 µm
Use: - for holding precision drill chucks - the parallel shank can be mounted into collets or milling chucks
l 1
201480 with cylindrical shank
Taper/d l
| 201480 1 | 1 | |
| mm | mm | |
| B6/6 | | 35 |
| B10/8 | | 35 |
| B12/10 | | 50 |
| B16/16 | | 50 |
| Drill drift | Drill drift | |
| Design: | Design: |
- made of special steel, hardened and burnished DIN - made of special steel, hardened and burnished
317 - handle plastic coated, red, with finger guard Use: For tool tapers DIN 228 with tang. Use: - one-hand operation
- for morse tapers DIN 228 with tang
201500 DIN 317
l
| for morse taper | 201500 | 1 | |||
| mm | 201550 semi-automatic | ||||
| 0 | | 90 | |||
| 1-2 | | 140 | l |
for morse taper 201550 1
| 3 | 190 | mm | |||
| 4 | | 225 | 1-3 | | 330 |
| 5-6 | | 265 | 4-6 | | 380 |
