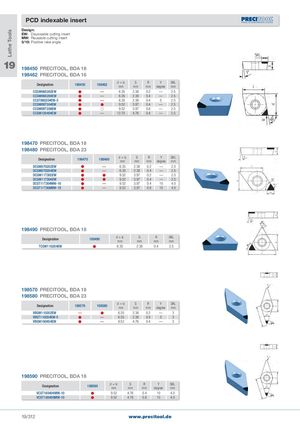

PCD indexable insert
MW: Reusable cutting insert
5/10: Positive rake angle
19
198450 PRECITOOL, BDA 18
198462 PRECITOOL, BDA 16
| Designation | 198450 | 198462 | d = Ic mm | S mm | R mm | Y degree | SKL mm |
| CCGW060202EW | | — | 6�35 | 2�38 | 0�2 | — | 2�5 |
| CCGW060204EW | | — | 6�35 | 2�38 | 0�4 | — | 2�5 |
| CCGT060204EW-5 | | — | 6�35 | 2�38 | 0�4 | 5 | 2�5 |
| CCGW09T304EW | | | 9�52 | 3�97 | 0�4 | — | 2�5 |
| CCGW09T308EW | | | 9�52 | 3�97 | 0�8 | — | 2�5 |
| CCGW120404EW | | — | 12�70 | 4�76 | 0�4 | — | 2�5 |
198470 PRECITOOL, BDA 18
198480 PRECITOOL, BDA 23
| Designation | 198470 | 198480 | d = Ic mm | S mm | R mm | Y degree | SKL mm |
| DCGW070202EW | | — | 6�35 | 2�38 | 0�2 | — | 2�5 |
| DCGW070204EW | | — | 6�35 | 2�38 | 0�4 | — | 2�5 |
| DCGW11T302EW | | | 9�52 | 3�97 | 0�2 | — | 2�5 |
| DCGW11T304EW | | | 9�52 | 3�97 | 0�4 | — | 2�5 |
| DCGT11T304MW-10 | | — | 9�52 | 3�97 | 0�4 | 10 | 4�0 |
| DCGT11T308MW-10 | | — | 9�52 | 3�97 | 0�8 | 10 | 4�0 |
198490 PRECITOOL, BDA 18
| Designation | 198490 | d = Ic mm | S mm | R mm | SKL mm |
| TCGW110204EW | | 6�35 | 2�38 | 0�4 | 2�5 |
198570 PRECITOOL, BDA 18
198580 PRECITOOL, BDA 23
| Designation | 198570 | 198580 | d = Ic mm | S mm | R mm | Y degree | SKL mm |
| VBGW110202EW | — | | 6�35 | 2�38 | 0�2 | — | 3 |
| VBGT110204EW-5 | | — | 6�35 | 2�38 | 0�4 | 5 | 3 |
| VBGW160404EW | | — | 9�52 | 4�76 | 0�4 | — | 3 |
198590 PRECITOOL, BDA 18
| Designation | 198590 | d = Ic mm | S mm | R mm | Y degree | SKL mm |
| VCGT160404MW-10 | | 9�52 | 4�76 | 0�4 | 10 | 4�0 |
| VCGT160408MW-10 | | 9�52 | 4�76 | 0�8 | 10 | 4�0 |
