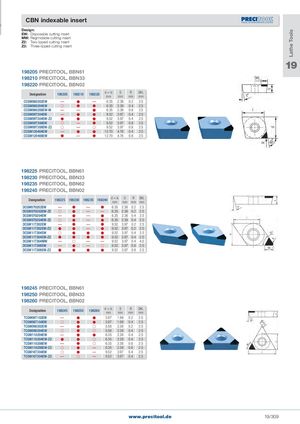

Lathe Tools CBN indexable insert Design: EW: Disposable cutting insert MW: Regrindable cutting insert Z2: Two-lipped cutting insert Z3: Three-lipped cutting insert 19 198205 PRECITOOL, BBN61 198210 PRECITOOL, BBN33 198220 PRECITOOL, BBN02 Designation 198205 198210 198220 d = Icmm Smm Rmm SKLmm CCGW060202EW —  — 6.35 2.38 0.2 2.5 CCGW060204EW    6.35 2.38 0.4 2.5 CCGW060208EW-W — —  6.35 2.38 0.8 2.5 CCGW09T304EW —   9.52 3.97 0.4 2.5 CCGW09T304EW-Z2    9.52 3.97 0.4 2.5 CCGW09T308EW  —  9.52 3.97 0.8 2.5 CCGW09T308EW-Z2  —  9.52 3.97 0.8 2.5 CCGW120404EW —   12.70 4.76 0.4 2.5 CCGW120408EW  —  12.70 4.76 0.8 2.5 198225 PRECITOOL, BBN61 198230 PRECITOOL, BBN33 198235 PRECITOOL, BBN62 198240 PRECITOOL, BBN02 Designation 198225 198230 198235 198240 d = Icmm Smm Rmm SKLmm DCGW070202EW —  —  6.35 2.38 0.2 2.5 DCGW070202EW-Z2   — — 6.35 2.38 0.2 2.5 DCGW070204EW —  —  6.35 2.38 0.4 2.5 DCGW070204EW-Z2   —  6.35 2.38 0.4 2.5 DCGW11T302EW —  —  9.52 3.97 0.2 2.5 DCGW11T302EW-Z2   —  9.52 3.97 0.2 2.5 DCGW11T304EW     9.52 3.97 0.4 2.5 DCGW11T304EW-Z2     9.52 3.97 0.4 2.5 DCGW11T304MW —  — — 9.52 3.97 0.4 4.0 DCGW11T308EW —  —  9.52 3.97 0.8 2.5 DCGW11T308EW-Z2     9.52 3.97 0.8 2.5 198245 PRECITOOL, BBN61 198250 PRECITOOL, BBN33 198260 PRECITOOL, BBN02 Designation 198245 198250 198260 d = Icmm Smm Rmm SKLmm TCGW06T102EW —   3.97 1.98 0.2 2.5 TCGW06T104EW    3.97 1.98 0.4 2.5 TCGW090202EW —   5.56 2.38 0.2 2.5 TCGW090204EW    5.56 2.38 0.4 2.5 TCGW110204EW —   6.35 2.38 0.4 2.5 TCGW110204EW-Z3    6.35 2.38 0.4 2.5 TCGW110208EW —   6.35 2.38 0.8 2.5 TCGW110208EW-Z3   — 6.35 2.38 0.8 2.5 TCGW16T304EW   — 9.52 3.97 0.4 2.5 TCGW16T304EW-Z3 —  — 9.52 3.97 0.4 2.5 www.precitool.de 19/309
