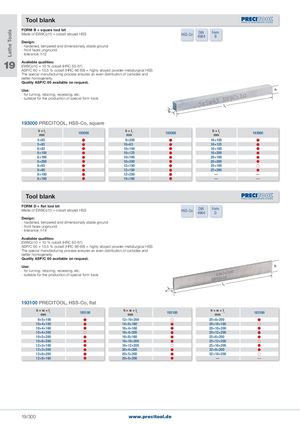

Tool blank

FORM B = square tool bit

Made of EW9Co10 = cobalt alloyed HSS DIN Form

4964 B Design: - hardened, tempered and dimensionally stable ground - front faces unground.

- tolerance: h12 19 Available qualities: EW9Co10 = 10 % cobalt (HRC 65-67) ASP/C 60 = 10,5 % cobalt (HRC 66-68) = highly alloyed powder-metallurgical HSS The special manufacturing process ensures an even distribution of carbides and better homogeneity. Quality ASP/C 60 available on request.

Use: - for turning, reboring, recessing, etc. - suitable for the production of special form tools

193000 PRECITOOL, HSS-Co, square

b × l1 mm193000b × l1 mm193000b × l1 mm193000
4×638×20016×100
5×6310×6316×125
6×6310×10016×160
6×10010×12516×200
6×16010×16020×160
6×20010×20020×200
8×6312×10025×160
8×8012×16025×200
8×10012×200——
8×16014×160——

Tool blank

FORM D = flat tool bit Made of EW9Co10 = cobalt alloyed HSS

Design: - hardened, tempered and dimensionally stable ground - front faces unground. - tolerance: h14

Available qualities: EW9Co10 = 10 % cobalt (HRC 65-67) ASP/C 60 = 10,5 % cobalt (HRC 66-68) = highly alloyed powder-metallurgical HSS The special manufacturing process ensures an even distribution of carbides and better homogeneity. Quality ASP/C 60 available on request.

Use: - for turning, reboring, recessing, etc. - suitable for the production of special form tools

DIN Form HSS-Co 4964 D

w

193100 PRECITOOL, HSS-Co, flat

h × w × l1 mm193100h × w × l1 mm193100h × w × l1 mm193100
8×5×10012×10×20020×8×200
10×4×10014×6×16020×10×160
10×4×16016×4×16020×10×200
10×4×20016×4×20020×12×200
10×5×20016×8×16025×6×200
10×6×20016×10×20025×12×200
12×3×10016×12×20025×16×200
12×3×20020×4×20032×8×200
12×6×20020×5×20032×16×200
12×8×16020×6×200——
