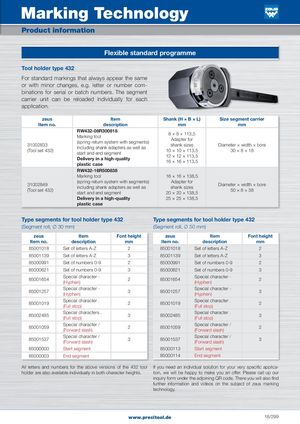

Flexible standard programme
Tool holder type 432
For standard markings that always appear the same
or with minor changes, e.g. letter or number com-
binations for serial or batch numbers. The segment
carrier unit can be reloaded individually for each
application.
| zeus Item no. | Item description | Shank (H × B × L) mm | Size segment carrier mm |
| 31002833 (Tool set 432) | RW432-08R300818 Marking tool (spring-return system with segments) including shank adapters as well as start and end segment Delivery in a high-quality plastic case | 8 × 8 × 113,5 Adapter for shank sizes 10 × 10 × 113,5 12 × 12 × 113,5 16 × 16 × 113,5 | Diameter × width × bore 30 × 8 × 18 |
| 31002849 (Tool set 432) | RW432-16R500838 Marking tool (spring-return system with segments) including shank adapters as well as start and end segment Delivery in a high-quality plastic case | 16 × 16 × 138,5 Adapter for shank sizes 20 × 20 × 138,5 25 × 25 × 138,5 | Diameter × width × bore 50 × 8 × 38 |
Type segments for tool holder type 432 Type segments for tool holder type 432
(Segment roll, x 30 mm) (Segment roll, x 50 mm)
| zeus Item no. | Item description | Font height mm |
| 85001018 | Set of letters A-Z | 2 |
| 85001139 | Set of letters A-Z | 3 |
| 85000991 | Set of numbers 0-9 | 2 |
| 85000621 | Set of numbers 0-9 | 3 |
| 85001654 | Special character- (Hyphen) | 2 |
| 85001257 | Special character- (Hyphen) | 3 |
| 85001019 | Special character. (Full stop) | 2 |
| 85002485 | Special characters. (Full stop) | 3 |
| 85001059 | Special character/ (Forward slash) | 2 |
| 85001537 | Special character/ (Forward slash) | 3 |
| 85000000 | Start segment | |
| 85000003 | End segment |
| zeus | Item | Font height |
| Item no. | description | mm |
| 85001018 | Set of letters A-Z | 2 |
| 85001139 | Set of letters A-Z | 3 |
| 85000991 | Set of numbers 0-9 | 2 |
| 85000621 | Set of numbers 0-9 | 3 |
| 85001654 | Special character- (Hyphen) | 2 |
| 85001257 | Special character- (Hyphen) | 3 |
| 85001019 | Special character. (Full stop) | 2 |
| 85002485 | Special character. (Full stop) | 3 |
| 85001059 | Special character/ (Forward slash) | 2 |
| 85001537 | Special character/ (Forward slash) | 3 |
| 85000113 | Start segment | |
| 85000114 | End segment |
All letters and numbers for the above versions of the 432 tool If you need an individual solution for your very specific applicaholder are also available individually in both character heights. tion, we will be happy to make you an offer. Please call up our inquiry form under the adjoining QR code. There you will also find further information and videos on the subject of zeus marking technology.
