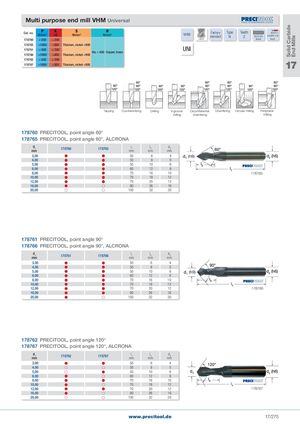

Общий каталог PRECITOOL - страница 280

Multi purpose end mill VHM Universal

P	K	S	N		Type	Teeth
N/mm2	HB	N/mm2	N/mm2	standard	N	2
							6535 HA

178760	< 850	< 200	short shank coated
178765	<1000	<300	UNI Titanium, nickel <900
178761	< 850	< 200
			Solid Carbide End Mills Alu < 600 Copper, brass
178766	<1000	<300	Titanium, nickel <900
178762	< 850	< 200	17
178767	<1000	<300	Titanium, nickel <900

Tapping	Countersinking	Drilling	V-groove	Circumferential	Chamfering	Circular milling	Peripheral
			milling	chamfering			milling

178760 PRECITOOL, point angle 60°

178765 PRECITOOL, point angle 60°, ALCRONA

	d			l	l	d
	1	178760	178765	1	2	2
	mm			mm	mm	mm
	3,00			50	6	(h9) 4
	4,00			50	8	5
	5,00			50	10	6
	6,00			60	12	8
	8,00			70	16	178765 10
10,00				70	18	12
12,00				70	20	12
16,00				80	26	16
20,00				100	32	20

178761 PRECITOOL, point angle 90°

178766 PRECITOOL, point angle 90°, ALCRONA

d			l	l	d
1	178761	178766	1	2	2
mm			mm	mm	mm
3,00			50	6	4
4,00			50	8	5
5,00			50	10	(h9) 6
6,00			60	12	8
8,00			70	16	10
10,00			70	18	12
12,00			70	20	178766 12
16,00			80	26	16
20,00			100	32	20

178762 PRECITOOL, point angle 120°

178767 PRECITOOL, point angle 120°, ALCRONA

d1 mm	178762	178767	l1 mm	l2 mm	d2 mm
3,00			50	6	4
4,00			50	8	5
5,00			50	10	6
6,00			60	12	8
8,00			70	16	10
10,00			70	18	12
12,00			70	20	12	178767
16,00			80	26	16
20,00			100	32	20
