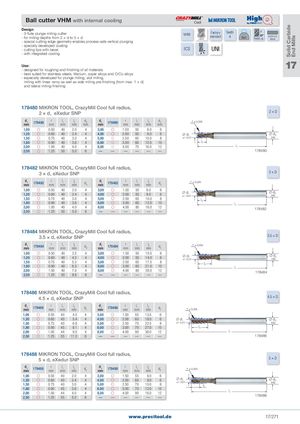

Ball cutter VHM with internal cooling
Design
| - 3-flute plunge milling cutter | Factory | Teeth | ||||
| VHM | 30° | |||||
| - for milling depths from 2 × d to 5 × d | standard | 4 | Ball | 6535 HA |
Twist shank - special cutting edge geometry enables process-safe vertical plunging coated - specially developed coating UNI - cutting tips with bevel ICS
- with integrated cooling Solid Carbide End Mills
17
Use: - designed for roughing and finishing of all materials - best suited for stainless steels, titanium, super alloys and CrCo alloys - especially developed for plunge milling, slot milling, milling with linear ramp as well as side milling pre-finishing (from max. 1 × d) and lateral milling-finishing.
178480 MIKRON TOOL, CrazyMill Cool full radius,
2 × d, eXedur SNP 2 × D
| d1 mm | 178480 | r mm | l1 mm | l2 mm | d2 mm | d1 mm | 178480 | r mm | l1 mm | l2 mm | d2 mm |
| 1,00 | | 0�50 | 40 | 2�0 | 4 | 3,00 | | 1�50 | 50 | 6�0 | 6 |
| 1,20 | | 0�60 | 40 | 2�4 | 4 | 4,00 | | 2�00 | 50 | 8�0 | 6 |
| 1,50 | | 0�75 | 40 | 3�0 | 4 | 5,00 | | 2�50 | 60 | 10�0 | 8 |
| 1,80 | | 0�90 | 40 | 3�6 | 4 | 6,00 | | 3�00 | 60 | 12�0 | 10 |
| 2,00 | | 1�00 | 40 | 4�0 | 4 | 8,00 | | 4�00 | 70 | 16�0 | 12 |
| 2,50 | | 1�25 | 50 | 5�0 | 6 | — | — | — | — | — | — |
1 2
178482 MIKRON TOOL, CrazyMill Cool full radius,
3 × d, eXedur SNP 3 × D
| d1 mm | 178482 | r mm | l1 mm | l2 mm | d2 | d1 mm | 178482 | r mm | l1 mm | l2 mm | d2 |
| 1,00 | | 0�50 | 40 | 2�0 | 4 | 3,00 | | 1�50 | 50 | 6�0 | 6 |
| 1,20 | | 0�60 | 40 | 2�4 | 4 | 4,00 | | 2�00 | 55 | 8�0 | 6 |
| 1,50 | | 0�75 | 40 | 3�0 | 4 | 5,00 | | 2�50 | 65 | 10�0 | 8 |
| 1,80 | | 0�90 | 40 | 3�6 | 4 | 6,00 | | 3�00 | 65 | 12�0 | 10 |
| 2,00 | | 1�00 | 40 | 4�0 | 4 | 8,00 | | 4�00 | 80 | 16�0 | 12 |
| 2,50 | | 1�25 | 50 | 5�0 | 6 | — | — | — | — | — | — |
d d +/- 0,01 (h6)
178482
178484 MIKRON TOOL, CrazyMill Cool full radius,
3.5 × d, eXedur SNP 3.5 × D
| d1 mm | 178484 | r mm | l1 mm | l2 mm | d2 | d1 mm | 178484 | r mm | l1 mm | l2 mm | d2 |
| 1,00 | | 0�50 | 40 | 3�5 | 4 | 3,00 | | 1�50 | 50 | 10�5 | 6 |
| 1,20 | | 0�60 | 40 | 4�2 | 4 | 4,00 | | 2�00 | 55 | 14�0 | 6 |
| 1,50 | | 0�75 | 40 | 5�3 | 4 | 5,00 | | 2�50 | 65 | 17�5 | 8 |
| 1,80 | | 0�90 | 40 | 6�3 | 4 | 6,00 | | 3�00 | 65 | 21�0 | 10 |
| 2,00 | | 1�00 | 40 | 7�0 | 4 | 8,00 | | 4�00 | 80 | 28�0 | 12 |
| 2,50 | | 1�25 | 50 | 8�8 | 6 | — | — | — | — | — | — |
d d +/- 0,01 (h6) l 178484
178486 MIKRON TOOL, CrazyMill Cool full radius,
4.5 × d, eXedur SNP 4.5 × D
| d1 mm | 178486 | r mm | l1 mm | l2 mm | d2 | d1 mm | 178486 | r mm | l1 mm | l2 mm | d2 |
| 1,00 | | 0�50 | 40 | 4�5 | 4 | 3,00 | | 1�50 | 55 | 13�5 | 6 |
| 1,20 | | 0�60 | 40 | 5�4 | 4 | 4,00 | | 2�00 | 60 | 18�0 | 6 |
| 1,50 | | 0�75 | 40 | 6�8 | 4 | 5,00 | | 2�50 | 70 | 22�5 | 8 |
| 1,80 | | 0�90 | 45 | 8�1 | 4 | 6,00 | | 3�00 | 70 | 27�0 | 10 |
| 2,00 | | 1�00 | 44 | 9�0 | 4 | 8,00 | | 4�00 | 90 | 36�0 | 12 |
| 2,50 | | 1�25 | 55 | 11�3 | 6 | — | — | — | — | — | — |
1 2
1
178488 MIKRON TOOL, CrazyMill Cool full radius,
5 × d, eXedur SNP 5 × D
| d1 mm | 178488 | r mm | l1 mm | l2 mm | d2 | d1 mm | 178488 | r mm | l1 mm | l2 mm | d2 |
| 1,00 | | 0�50 | 40 | 2�0 | 4 | 3,00 | | 1�50 | 55 | 6�0 | 6 |
| 1,20 | | 0�60 | 40 | 2�4 | 4 | 4,00 | | 2�00 | 60 | 8�0 | 6 |
| 1,50 | | 0�75 | 40 | 3�0 | 4 | 5,00 | | 2�50 | 70 | 10�0 | 8 |
| 1,80 | | 0�90 | 45 | 3�6 | 4 | 6,00 | | 3�00 | 70 | 12�0 | 10 |
| 2,00 | | 1�00 | 44 | 4�0 | 4 | 8,00 | | 4�00 | 90 | 16�0 | 12 |
| 2,50 | | 1�25 | 55 | 5�0 | 6 | — | — | — | — | — | — |
