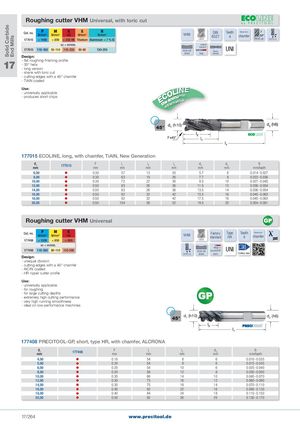

Solid Carbide End Mills Roughing cutter VHM Universal, with toric cut Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2177015< 1400< 850> 250 HBTitaniumAluminium < 7 % SiVHM coated DIN Teeth Blade form65274chamfer30°Twist Centre cut vc = m/min. 177015 110-160 55-110 110-230 50-80 130-250 6535 HB Shank UNI shank long relieved Design: 17 - flat roughing-finishing profile- 30° helix- long version - shank with toric cut - cutting edges with a 45° chamfer - TiAlN coated Use:- universally applicable- produces short chips ECOLINE thaelteecronnaotimveic 45° (h10) 4 177015 ECOLINE, long, with chamfer, TiAlN, New Generation d1mm 177015 Fmm l1 l2 l4mmmmmm d3mm d2mm fzmm/tooth 6,00 0.30 57 13 20 5.7 6 0.014 - 0.027 8,00 0.30 63 19 26 7.7 8 0.022 - 0.036 10,00 0.30 72 22 30 9.5 10 0.027 - 0.045 12,00 0.50 83 26 36 11.5 12 0.036 - 0.054 14,00 0.50 83 26 36 13.5 14 0.036 - 0.054 16,00 0.50 92 32 42 15.5 16 0.045 - 0.063 18,00 0.50 92 32 42 17.5 18 0.045 - 0.063 20,00 0.50 104 38 52 19.5 20 0.054 - 0.081 Roughing cutter VHM Universal Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Type Teeth Blade formstandardHR4chamfer 177408 < 1200 < 850 < 650 coated vc = m/min. 177408 110-280 80-110 110-200 6535 HB UNI Centre cut shank short Cutting data Design: - unequal division - cutting edges with a 45° chamfer - AlCrN coated - HR ripper cutter profile Use: - universally applicable - for roughing - for large cutting depths - extremely high cutting performance - very high running smoothness - ideal on low-performance machines 45° d1 (h10) d2 (h6) 177408 PRECITOOL-GP, short, type HR, with chamfer, ALCRONA d1mm 177408 Fmm l1 l2 d2mmmmmm fzmm/tooth 4,00 0.18 54 8 6 0.010 - 0.035 5,00 0.20 54 9 6 0.015 - 0.035 6,00 0.20 54 10 6 0.025 - 0.040 8,00 0.20 58 12 8 0.030 - 0.050 10,00 0.30 66 14 10 0.040 - 0.070 12,00 0.30 73 16 12 0.060 - 0.090 14,00 0.30 75 18 14 0.070 - 0.110 16,00 0.40 82 22 16 0.090 - 0.130 18,00 0.40 84 24 18 0.110 - 0.150 20,00 0.50 92 26 20 0.130 - 0.170 17/264 www.precitool.de
