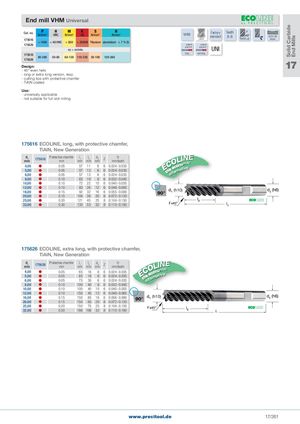

Общий каталог PRECITOOL - страница 266

P	H	M	K	S	N		Teeth
N/mm2	HRC	N/mm2	HB	N/mm2	N/mm2	standard	6-8		45°
								Twist		6535 HB

175616					coated		shank
	< 1400 < 48 HRC < 850		> 250HB Titanium aluminium < 7 % Si
175626						UNI
		vc = m/min.
175616				long	overlong			Solid Carbide End Mills

80-280 50-80 60-120 110-230 50-100 120-280

175626 17 Design: - 45° even helix - long or extra long version, resp.

- cutting tips with protective chamfer - TiAlN coated

Use: - universally applicable - not suitable for full-slot milling

175616 ECOLINE, long, with protective chamfer,

TiAlN, New Generation

E

d		Protective chamfer	l	l	d		fz
1	175616		1	2	2		*OLIN*
mm		mm	mm	mm	mm Z		mm/tooth
							EC	*mic*
4,00		0�05	57	11	6	6 0�024 - 0�035		*ono*
							ec	*ative*
5,00		0�05	57	13	6	6 0�024 - 0�035	*the ern*
6,00		0�05	57	13	6	6 0�024 - 0�035	*alt*
8,00		0�10	63	19	8	6 0�032 - 0�045
10,00		0�10	72	22	10	6 0�040 - 0�055
12,00		0�10	83	26	12	6 0�048 - 0�065	(h10)
16,00		0�15	92	32	16	6 0�055 - 0�080	90°
20,00		0�15	104	38	20	8 0�072 - 0�120
25,00		0�20	121	45	25	8 0�104 - 0�150
32,00		0�30	133	53	32	8 0�110 - 0�160

175626 ECOLINE, extra long, with protective chamfer,

TiAlN, New Generation

d1 mm	175626	Protective chamfer mm	l1 mm	l2 mm	d2 mm	Z	fz mm/tooth	O L I N E
4,00		0�05	65	16	6	6	0�024 - 0�035	E C c o n o m ic
5,00		0�05	65	18	6	6	0�024 - 0�035	he e rn at iv e
6,00		0�05	75	30	6	6	0�024 - 0�035	t al te
8,00		0�10	100	40	8	6	0�032 - 0�045
10,00		0�10	100	40	10	6	0�040 - 0�055
12,00		0�10	150	45	12	6	0�048 - 0�065
16,00		0�15	150	65	16	6	0�056 - 0�080	(h10) 90°
20,00		0�15	150	65	20	8	0�072 - 0�120
25,00		0�20	150	75	25	8	0�104 - 0�150
32,00		0�30	186	106	32	8	0�110 - 0�160
