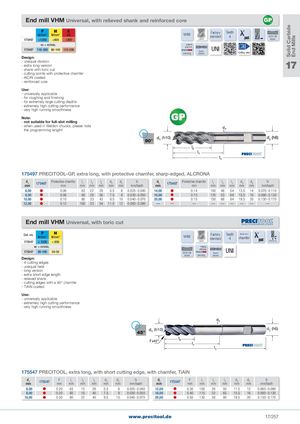

End mill VHM Universal, with relieved shank and reinforced core
VHM Factory
| N/mm2 | N/mm2 | HB | standard | 4 | ||
| 6535 HB | ||||||
| 175497 | <1200 | <850 | <300 | coated | shank | |
| vc = m/min. | UNI | |||||
| 175497 110-280 80-140 110-200 | ||||||
| Shank | Cutting data |
overlong relieved Solid Carbide End Mills
Design: - unequal division 17 - extra long version - shank with toric cut
- cutting points with protective chamfer - AlCrN coated - reinforced core
Use: - universally applicable - for roughing and finishing - for extremely large cutting depths - extremely high cutting performance - very high running smoothness
Note: - not suitable for full-slot milling - when used in Weldon chucks, please note the programming length! 3
(h10)
90°
4
175497 PRECITOOL-GP, extra long, with protective chamfer, sharp-edged, ALCRONA
| d | Protective chamfer | l | l | l | d | d | fz | d | Protective chamfer | l | l | l | d | d | fz | ||||
| 1 | 175497 | 1 | 2 | 4 | 3 | 2 | 1 | 175497 | 1 | 2 | 4 | 3 | 2 | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm/tooth | mm | mm | mm | mm | mm | mm | mm | mm/tooth | ||||
| 6,00 | | 0�06 | 63 | 22 | 29 | 5�5 | 6 | 0�025 - 0�040 | 14,00 | | 0�14 | 100 | 48 | 54 | 13�5 | 14 | 0�070 - 0�110 | ||
| 8,00 | | 0�08 | 80 | 28 | 36 | 7�5 | 8 | 0�030 - 0�050 | 16,00 | | 0�15 | 125 | 53 | 69 | 15�5 | 16 | 0�090 - 0�130 | ||
| 10,00 | | 0�10 | 80 | 33 | 43 | 9�5 | 10 | 0�040 - 0�070 | 20,00 | | 0�15 | 150 | 68 | 84 | 19�5 | 20 | 0�130 - 0�170 | ||
| 12,00 | | 0�12 | 100 | 33 | 54 | 11�5 | 12 | 0�060 - 0�090 | — | — | — | — | — | — | — | — | — |
End mill VHM Universal, with toric cut
P M Factory Teeth
Cat. no. VHM Blade form
| N/mm2 | N/mm2 | standard | chamfer 4 | |||
| 175547 | < 1200 | < 850 | coated | Centre cut | ||
| vc = m/min. | UNI | |||||
| 175547 | 65-100 | 50-55 | 6535 HB | |||
| Shank | ||||||
| shank | overlong | relieved |
Design: - 4 cutting edges - unequal helix - long version
- extra short edge length - relieved shank - cutting edges with a 45° chamfer - TiAlN coated
Use: - universally applicable - extremely high cutting performance - very high running smoothness
3
(h10) d (h6)
45° 2
4
175547 PRECITOOL, extra long, with short cutting edge, with chamfer, TiAlN
| d | F | l | l | l | d | d | fz | d | F | l | l | l | d | d | fz | ||||
| 1 | 175547 | 1 | 2 | 4 | 3 | 2 | 1 | 175547 | 1 | 2 | 4 | 3 | 2 | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm/tooth | mm | mm | mm | mm | mm | mm | mm | mm/tooth |
