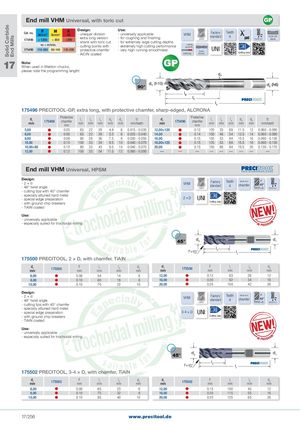

Solid Carbide End Mills EE rr End mill VHM Universal, with toric cut Cat. no. PN/mm2 MN/mm2 KHB Design:- unequal division Use:- universally applicable175496< 1200< 850<300- extra long version- shank with toric cut- for roughing and finishing- for extremely large cutting depthsVHMFactoryTeethstandard4coated6535 HBCentre cutshank vc = m/min. - cutting points with - extremely high cutting performance175496110-28080-140110-200protective chamfer- very high running smoothnessShankUNI- AlCrN coatedoverlongrelievedCutting data 17 Note:When used in Weldon chucks, please note the programming length! 3 (h10) 90° 4 175496 PRECITOOL-GP, extra long, with protective chamfer, sharp-edged, ALCRONA d1mm 175496 Protectivechamfermml1l2 l4mmmmmm d3mm d2mm fzmm/tooth d1mm 175496 Protective chamfermm l1 l2 l4mmmmmm d3mm d2mm fzmm/tooth 5,00  0.05 63 22 29   4.8 6 0.015 - 0.035 12,00×120  0.12 120 33 69 11.5 12 0.060 - 0.090 6,00  0.06 63 22 29   5.5 6 0.025 - 0.040 14,00  0.14 100 48 54 13.5 14 0.060 - 0.090 8,00  0.08 80 28 36   7.5 8 0.030 - 0.050 16,00  0.15 150 53 84 15.5 16 0.090 - 0.130 10,00  0.10 100 33 54   9.5 10 0.040 - 0.070 16,00×125  0.15 125 53 69 15.5 16 0.090 - 0.130 10,00×80  0.10 80 33 43   9.5 10 0.040 - 0.070 20,00  0.15 150 68 84 19.5 20 0.130 - 0.170 12,00  0.12 100 33 54 11.5 12 0.060 - 0.090 — — — — — — — — — End mill VHM Universal, HPSM Design:- 2 × d- 48° twist angle- cutting tips with 45° chamfer- specially attuned hard metalspecially- special edge preparation VHM Factory Teeth Blade formstandardcoated4chamfer48°TwistCentre cut2×DUNI - with ground chip breakers Cutting data - TiAlN coated Use: - universally applicable - especially suited for trochoidal milling suitable fo 45° d 2F×45° l2 l1 d 1 175500 PRECITOOL, 2 × D, with chamfer, TiAlN d1mm 175500 Fmm l1 l2 d2mmmmmm d1mm 175500 Fmm l l d12 2mmmmmm 6,00  0.08 54 14 6 12,00  0.12 83 26 12 8,00  0.10 60 18 8 16,00  0.20 92 34 16 10,00  0.10 70 22 10 20,00  0.25 104 42 20 Design: - 2 × d- 48° twist angle- cutting tips with 45° chamfer- specially attuned hard metal- special edge preparationspecially VHM Factory Teeth Blade formstandardcoated4chamfer48°TwistCentre cut3-4 × DUNI - with ground chip breakers Cutting data - TiAlN coated Use: - universally applicable - especially suited for trochoidal milling suitable fo 45° d2F×45° l2 l1 d1 175502 PRECITOOL, 3-4 × D, with chamfer, TiAlN d1mm 175502 Fmm l l d12 2mmmmmm d1mm 175502 Fmm l l d12 2mmmmmm 6,00  0.08 65 23 6 12,00  0.15 100 45 12 8,00  0.10 75 32 8 16,00  0.20 115 55 16 10,00  0.10 85 40 10 20,00  0.25 125 65 20 17/256 www.precitool.de
