| N/mm2 | N/mm2 | HB | standard | 2 | 30° | |||||
| Twist | 6535 HB | |||||||||
| 175229 | < 1200 | < 850 | < 650 | coated | Centre cut | shank | ||||
| vc = m/min. | UNI | |||||||||
| 175229 110-280 80-110 110-200 |

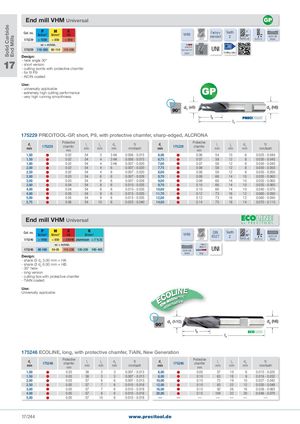

Solid Carbide End Mills short P9 Cutting data
Design: 17 - helix angle 30° - short version - cutting points with protective chamfer
- for fit P9 - AlCrN coated
Use: - universally applicable - extremely high cutting performance - very high running smoothness
(e8)
90°
175229 PRECITOOL-GP, short, P9, with protective chamfer, sharp-edged, ALCRONA
| d1 mm | 175229 | Protective chamfer mm | l1 mm | l2 mm | d2 mm | fz mm/tooth | d1 mm | 175229 | Protective chamfer mm | l1 mm | l2 mm | d2 mm | fz mm/tooth |
| 1,00 | | 0�02 | 54 | 3 | 3 HA | 0�006 - 0�015 | 6,00 | | 0�06 | 54 | 10 | 6 | 0�025 - 0�040 |
| 1,50 | | 0�02 | 54 | 4 | 3 HA | 0�006 - 0�015 | 6,75 | | 0�07 | 58 | 12 | 8 | 0�030 - 0�045 |
| 1,80 | | 0�02 | 54 | 4 | 3 HA | 0�007 - 0�020 | 7,00 | | 0�07 | 58 | 12 | 8 | 0�030 - 0�045 |
| 2,00 | | 0�02 | 54 | 4 | 6 | 0�007 - 0�020 | 7,75 | | 0�08 | 58 | 12 | 8 | 0�030 - 0�050 |
| 2,50 | | 0�02 | 54 | 4 | 6 | 0�007 - 0�020 | 8,00 | | 0�08 | 58 | 12 | 8 | 0�030 - 0�050 |
| 2,80 | | 0�03 | 54 | 6 | 6 | 0�007 - 0�028 | 8,70 | | 0�09 | 66 | 14 | 10 | 0�035 - 0�060 |
| 3,00 | | 0�03 | 54 | 6 | 6 | 0�007 - 0�028 | 9,00 | | 0�09 | 66 | 14 | 10 | 0�035 - 0�060 |
| 3,80 | | 0�04 | 54 | 8 | 6 | 0�010 - 0�035 | 9,70 | | 0�10 | 66 | 14 | 10 | 0�035 - 0�060 |
| 4,00 | | 0�04 | 54 | 8 | 6 | 0�010 - 0�035 | 10,00 | | 0�10 | 66 | 14 | 10 | 0�040 - 0�070 |
| 4,80 | | 0�05 | 54 | 9 | 6 | 0�015 - 0�035 | 11,70 | | 0�12 | 73 | 16 | 12 | 0�060 - 0�090 |
| 5,00 | | 0�05 | 54 | 9 | 6 | 0�015 - 0�035 | 12,00 | | 0�12 | 73 | 16 | 12 | 0�060 - 0�090 |
| 5,75 | | 0�06 | 54 | 10 | 6 | 0�025 - 0�040 | 14,00 | | 0�14 | 75 | 18 | 14 | 0�070 - 0�110 |
End mill VHM Universal
| P | M | K | N | ||
| Cat. no. | |||||
| N/mm2 | N/mm2 | HB | N/mm2 | ||
| 175246 | < 1400 | < 850 | > 250HB aluminium < 7 % Si | ||
| vc = m/min. | |||||
| 175246 | 80-160 | 50-85 | 110-230 120-220 100-160 |
Design: - shank Ø d 3,00 mm = HA - shank Ø d2 6.00 mm = HB - 30° helix 2
- long version - cutting tips with protective chamfer - TiAlN coated
Use: Universally applicable
DIN Teeth VHM
| 6527 | 2 | 30° | ||
| Twist | 6535 HA |
coated Centre cut shank
UNI 6535 HB shank long
E
OLIN
EC mic
ono
ec ative
the ern
alt
(h10)
90°
175246 ECOLINE, long, with protective chamfer, TiAlN, New Generation
| d1 mm | 175246 | Protective chamfer mm | l1 mm | l2 mm | d2 mm | fz mm/tooth | d1 mm | 175246 | Protective chamfer mm | l1 mm | l2 mm | d2 mm | fz mm/tooth |
| 1,00 | | 0�03 | 38 | 2 | 3 | 0�007 - 0�013 | 6,00 | | 0�05 | 57 | 10 | 6 | 0�015 - 0�025 |
| 1,50 | | 0�03 | 38 | 3 | 3 | 0�007 - 0�013 | 8,00 | | 0�10 | 63 | 16 | 8 | 0�018 - 0�032 |
| 2,00 | | 0�03 | 57 | 6 | 6 | 0�007 - 0�013 | 10,00 | | 0�10 | 72 | 19 | 10 | 0�027 - 0�042 |
| 2,50 | | 0�05 | 57 | 7 | 6 | 0�010 - 0�018 | 12,00 | | 0�10 | 83 | 22 | 12 | 0�030 - 0�049 |
| 3,00 | | 0�05 | 57 | 7 | 6 | 0�010 - 0�018 | 16,00 | | 0�15 | 92 | 26 | 16 | 0�039 - 0�063 |
| 4,00 | | 0�05 | 57 | 8 | 6 | 0�010 - 0�018 | 20,00 | | 0�15 | 104 | 32 | 20 | 0�048 - 0�070 |
| 5,00 | | 0�05 | 57 | 10 | 6 | 0�010 - 0�018 | — | — | — | — | — | — | — |
