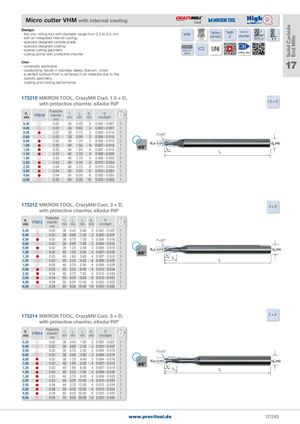

Solid Carbide End Mills Micro cutter VHM with internal cooling Design:- the only milling tool with diameter range from 0.3 to 6.0 mmwith an integrated internal cooling VHM Factory Teeth Blade formstandardcoated2chamfer30°Twist - specially designed carbide grade - specially designed coating- special cutting geometry 6535 HA ICS UNI - cutting points with protective chamfer shank Cutting data Use:- universally applicable 17 - outstanding results in stainless steels, titanium, nickel - a perfect surface finish is achieved in all materials due to the specific geometry, coating and cooling performance 175210 MIKRON TOOL, CrazyMill Cool, 1.5 × D, with protective chamfer, eXedur RIP 1.5 × D d1mm 175210 Protectivechamfermml1mml2mm d2mm fzmm/tooth 0,30  0.02 38 0.45 3 0.002 - 0.007 1 0,40  0.02 38 0.60 3 0.002 - 0.007 1 0,50  0.02 38 0.75 3 0.004 - 0.016 10,600.02380.9030.004 - 0.0161F×45° 0,80  0.02 38 1.20 3 0.004 - 0.016 11,000.02401.5040.007 - 0.01811,200.03401.8040.007 - 0.0181(± 0,01)45° (h6) 1,50  0.03 40 2.25 4 0.009 - 0.026 1 1,80  0.03 40 2.70 4 0.009 - 0.026 1 2,00  0.03 40 3.00 4 0.010 - 0.034 1 2,50  0.04 40 3.75 4 0.010 - 0.034 1 3,00  0.04 50 4.50 6 0.015 - 0.052 1 4,00  0.04 50 6.00 6 0.020 - 0.055 1 6,00  0.05 60 9.00 10 0.020 - 0.055 1 175212 MIKRON TOOL, CrazyMill Cool, 3 × D, 3×D with protective chamfer, eXedur RIP d1mm 175212 Protectivechamfermml1mml2mm l4mm d2mm fzmm/tooth 0,30  0.02 38 0.45  0.90 3 0.002 - 0.007 1 0,40  0.02 38 0.60  1.20 3 0.002 - 0.007 1 0,50  0.02 38 0.75  1.50 3 0.004 - 0.016 1 F×45° 0,60  0.02 38 0.90  1.80 3 0.004 - 0.016 1 0,80  0.02 38 1.20  2.40 3 0.004 - 0.016 1 (± 0,01) (h6) 1,00  0.02 40 1.50  3.00 4 0.007 - 0.020 1 45° 1,20  0.03 40 1.80  3.60 4 0.007 - 0.020 1 1,50  0.03 40 2.25  4.50 4 0.009 - 0.026 1 4 1,80  0.03 40 2.70  5.40 4 0.009 - 0.026 1 2,00  0.03 40 3.00  6.00 4 0.010 - 0.034 1 2,50  0.04 40 3.75  7.50 4 0.010 - 0.034 1 3,00  0.04 50 4.50  9.00 6 0.015 - 0.050 1 4,00  0.04 55 6.00 12.00 6 0.020 - 0.055 1 6,00  0.05 65 9.00 18.00 10 0.020 - 0.055 1 175214 MIKRON TOOL, CrazyMill Cool, 5 × D, 5×D with protective chamfer, eXedur RIP d1mm 175214 Protectivechamfermml1mml2mm l4mm d2mm fzmm/tooth 0,30  0.02 38 0.45  1.50 3 0.002 - 0.007 1 0,40  0.02 38 0.60  2.00 3 0.002 - 0.007 1 0,50  0.02 38 0.75  2.50 3 0.004 - 0.016 1 F×45° 0,60  0.02 38 0.90  3.00 3 0.004 - 0.016 1 0,80  0.02 38 1.20  4.00 3 0.004 - 0.016 1 (± 0,01) (h6) 1,00  0.02 40 1.50  5.00 4 0.007 - 0.018 1 45° 1,20  0.03 40 1.80  6.00 4 0.007 - 0.018 1 4 1,50  0.03 40 2.25  7.50 4 0.009 - 0.026 1 1,80  0.03 40 2.70  9.00 4 0.009 - 0.026 1 2,00  0.03 44 3.00 10.00 4 0.010 - 0.034 1 2,50  0.04 44 3.75 12.50 4 0.010 - 0.034 1 3,00  0.04 55 4.50 15.00 6 0.015 - 0.052 1 4,00  0.04 60 6.00 20.00 6 0.020 - 0.050 1 6,00  0.05 70 9.00 30.00 10 0.020 - 0.050 1 www.precitool.de 17/243
