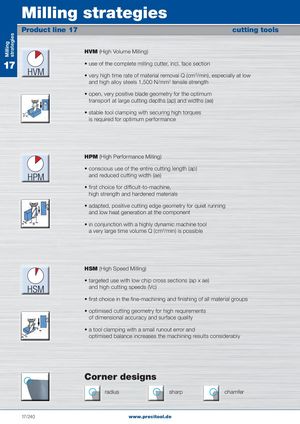

sFtMrirlälaistnsetgrgiaetsegien FMriällsinstgrasteragtiegnies Produkctglrinuepp1e717 Schneicduwtteinrkgzteouogles HVM (High Volume Milling) 17 • use of the complete milling cutter, incl. face section HVM • very high time rate of material removal Q (cm3/min), especially at low and high alloy steels 1,500 N/mm2 tensile strength • open, very positive blade geometry for the optimum transport at large cutting depths (ap) and widths (ae) • stable tool clamping with securing high torques is required for optimum performance HPM (High Performance Milling) • conscious use of the entire cutting length (ap) HPM and reduced cutting width (ae) • first choice for difficult-to-machine, high strength and hardened materials • adapted, positive cutting edge geometry for quiet running and low heat generation at the component • in conjunction with a highly dynamic machine tool a very large time volume Q (cm3/min) is possible HSM (High Speed Milling) • targeted use with low chip cross sections (ap x ae) HSM and high cutting speeds (Vc) • first choice in the fine-machining and finishing of all material groups • optimised cutting geometry for high requirements of dimensional accuracy and surface quality • a tool clamping with a small runout error and optimised balance increases the machining results considerably Corner designs radius sharp chamfer 17/240 www.precitool.de
