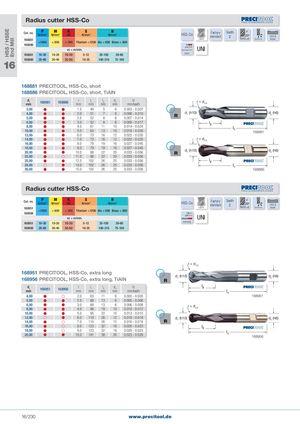

HSS / HSSE End Mill Radius cutter HSS-Co Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2168881 HSS-Co coated Factory Teethstandard225°Twist Centre cut 1835 Bshank <1000 < 850 < 240 Titanium <1200 Alu < 600 Brass < 600 168886 vc = m/min. UNI 168881 10-30 10-20 10-20 5-12 35-150 30-60 short 168886 20-60 30-40 35-50 10-25 100-210 75-100 16 168881 PRECITOOL, HSS-Co, short 168886 PRECITOOL, HSS-Co, short, TiAIN d1mm 168881 168886 rmm l1 l2 d2mmmmmm fzmm/tooth r = d1/2 3,00    1.5 49 5 6 0.003 - 0.007 4,00    2.0 51 7 6 0.006 - 0.0105,00 2.552860.007 - 0.014Rd1 (h10) d2 (h6) 6,00    3.0 52 8 6 0.009 - 0.017 8,00    4.0 61 11 10 0.014 - 0.024 10,00    5.0 63 13 10 0.018 - 0.030 168881 12,00    6.0 73 16 12 0.022 - 0.035 14,00    7.0 73 16 12 0.022 - 0.035 r = d1/2 16,00    8.0 79 19 16 0.027 - 0.045 18,00    9.0 79 19 16 0.027 - 0.045 20,00   10.0 88 22 20 0.033 - 0.056 R d1 (h10) d2 (h6) 22,00   11.0 88 22 20 0.033 - 0.056 25,00   12.5 102 26 25 0.033 - 0.056 28,00   14.0 102 26 25 0.033 - 0.056 30,00   15.0 102 26 25 0.033 - 0.056 168886 Radius cutter HSS-Co Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2168951 HSS-Co coated Factory Teethstandard225°Twist Centre cut 1835 Bshank <1000 < 850 < 240 Titanium <1200 Alu < 600 Brass < 600 168956 vc = m/min. UNI 168951 10-30 10-20 10-20 5-12 35-150 30-60 overlong 168956 20-60 30-40 35-50 10-25 100-210 75-100 r = d1/2 168951 PRECITOOL, HSS-Co, extra long 168956 PRECITOOL, HSS-Co, extra long, TiAIN d1 (h10)R d2 (h6) d1mm 168951 168956 rmm l1 l2 d2mmmmmm fzmm/tooth 4,00    2.0 63 11 6 0.003 - 0.005 168951 5,00    2.5 68 13 6 0.005 - 0.006 6,00    3.0 68 13 6 0.006 - 0.0088,00 4.08819100.010 - 0.012r = d1/2 10,00    5.0 95 22 10 0.013 - 0.015 12,00    6.0 110 26 12 0.016 - 0.01814,00 7.011026120.016 - 0.018Rd1 (h10) d2 (h6) 16,00    8.0 123 32 16 0.020 - 0.023 18,00    9.0 123 32 16 0.020 - 0.023 20,00   10.0 141 38 20 0.023 - 0.028 168956 16/230 www.precitool.de
