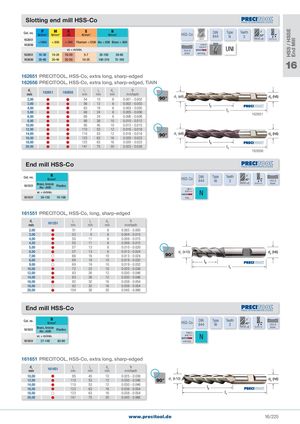

Общий каталог PRECITOOL - страница 230

HSS / HSSE End Mill Slotting end mill HSS-Co Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2162651 HSS-Co coated DIN Type Teeth844N3 30°Twist Centre cut <1000 < 850 < 240 Titanium <1200 Alu < 600 Brass < 600 162656 vc = m/min. 1835 B UNI 162651 10-30 10-20 10-20 5-7 35-150 30-60 shank overlong P9 162656 20-60 30-40 35-50 10-25 100-210 75-100 16 162651 PRECITOOL, HSS-Co, extra long, sharp-edged 162656 PRECITOOL, HSS-Co, extra long, sharp-edged, TiAlN d1mm 162651 162656 l1mm l2mm d2mm fzmm/tooth2,00541060.001 - 0.00290°d1 (e8) 3,00   56 12 6 0.002 - 0.003 4,00   63 19 6 0.003 - 0.005 5,00   68 24 6 0.005 - 0.0066,00682460.006 - 0.008 162651 8,00   88 38 10 0.010 - 0.012 10,00   95 45 10 0.013 - 0.015 12,00   110 53 12 0.016 - 0.018 14,00   110 53 12 0.016 - 0.018 90° d1 (e8) 16,00   123 63 16 0.020 - 0.023 18,00   123 63 16 0.020 - 0.023 20,00   141 75 20 0.023 - 0.028 162656 End mill HSS-Co Cat. no. NN/mm2161551Brass, bronzeAlu <600Plastics HSS-Co DIN844 Type TeethW3 40° 1835 BTwistCentre cutshank vc = m/min. N 161551 30-155 70-100 long 161551 PRECITOOL, HSS-Co, long, sharp-edged d1mm 161551 l 1mm l 2mm d 2mm fzmm/tooth 2,00  51 7 6 0.002 - 0.005 3,00  52 8 6 0.004 - 0.010 4,00  55 11 6 0.008 - 0.015 4,50  55 11 6 0.008 - 0.015 5,00  57 13 6 0.010 - 0.020 6,00  57 13 6 0.013 - 0.0247,006616100.013 - 0.02490°d1 (k10) 8,00  69 19 10 0.019 - 0.032 9,00  69 19 10 0.019 - 0.032 10,00  72 22 10 0.025 - 0.038 12,00  83 26 12 0.030 - 0.046 14,00  83 26 12 0.030 - 0.046 16,00  92 32 16 0.038 - 0.054 18,00  92 32 16 0.038 - 0.054 20,00  104 38 20 0.045 - 0.066 End mill HSS-Co Cat. no. NN/mm2161651Brass, bronzeAlu <600Plastics HSS-Co DIN844 Type TeethW3 40° 1835 BTwistCentre cutshank vc = m/min. N 161651 27-140 63-90 overlong 161651 PRECITOOL, HSS-Co, extra long, sharp-edged d1mm 161651 l1mm l2mm d2mm fzmm/tooth 10,00  95 45 10 0.025 - 0.038 12,00  110 53 12 0.030 - 0.046 90° d1 (k10) 14,00  110 53 12 0.030 - 0.046 16,00  123 63 16 0.038 - 0.054 18,00  123 63 16 0.038 - 0.054 20,00  141 75 20 0.045 - 0.066 www.precitool.de 16/225
