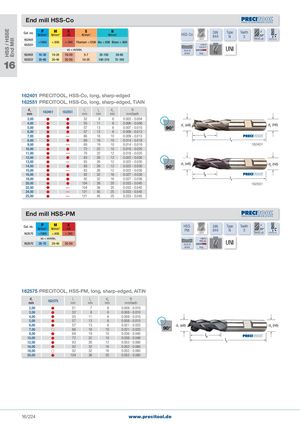

HSS / HSSE End Mill End mill HSS-Co Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2162401 HSS-Co coated DIN Type Teeth844N3 30°Twist Centre cut <1000 < 850 < 240 Titanium <1200 Alu < 600 Brass < 600 162551 vc = m/min. 1835 B UNI 162401 10-30 10-20 10-20 5-7 35-150 30-60 shank long P9 162551 20-60 30-40 35-50 10-25 100-210 75-100 16 162401 PRECITOOL, HSS-Co, long, sharp-edged 162551 PRECITOOL, HSS-Co, long, sharp-edged, TiAlN d1mm 162401 162551 l 1mm l 2mm d 2mm fzmm/tooth 3,00   52 8 6 0.003 - 0.004 4,00   55 11 6 0.006 - 0.0085,00571360.007 - 0.01090°d1 (e8) d2 (h6) 6,00   57 13 6 0.009 - 0.013 7,00  — 66 16 10 0.009 - 0.013 8,00   69 19 10 0.014 - 0.019 9,00  — 69 19 10 0.014 - 0.019 162401 10,00   72 22 10 0.018 - 0.025 11,00  — 79 22 12 0.018 - 0.025 12,00   83 26 12 0.022 - 0.030 13,00  — 83 26 12 0.022 - 0.03014,008326120.022 - 0.03090°d1 (e8) d2 (h6) 15,00  — 83 26 12 0.022 - 0.030 16,00   92 32 16 0.027 - 0.038 18,00   92 32 16 0.027 - 0.038 20,00   104 38 20 0.033 - 0.045 162551 22,00  — 104 38 20 0.033 - 0.045 24,00  — 121 45 25 0.033 - 0.045 25,00  — 121 45 25 0.033 - 0.045 End mill HSS-PM Cat. no. PN/mm2 MN/mm2 KHB162575<1000< 850< 240 HSS- DIN Type TeethPM844Ncoated330°Twist Centre cut vc = m/min. 162575 20-75 20-40 35-50 1835 B UNI shank long P9 162575 PRECITOOL, HSS-PM, long, sharp-edged, AlTiN d1mm 162575 l 1mm l 2mm d 2mm fzmm/tooth 2,00  51 7 6 0.008 - 0.010 3,00  52 8 6 0.008 - 0.010 4,00  55 11 6 0.008 - 0.010 5,00  57 13 6 0.008 - 0.010 6,00  57 13 6 0.021 - 0.0257,006616100.021 - 0.02590°d1 (e8) d2 (h6) 8,00  69 19 10 0.036 - 0.040 10,00  72 22 10 0.036 - 0.048 12,00  83 26 12 0.052 - 0.080 16,00  92 32 16 0.052 - 0.080 18,00  92 32 16 0.052 - 0.080 20,00  104 38 20 0.052 - 0.080 16/224 www.precitool.de
