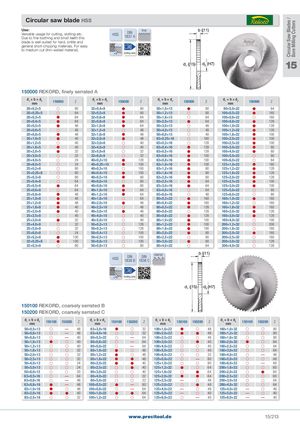

Circular saw blade HSS

Use: fine Versatile usage for cutting, slotting etc. DIN Due to fine toothing and small teeth this 1837 A blade is well-suited for hard, brittle and general short-chipping materials. For easy to medium cut (thin-walled material). +5° Cutting data

15 150000 REKORD, finely serrated A

d1× b × d2 mm	150000	Z	d1× b × d2 mm	150000	Z	d1× b × d2 mm	150000	Z	d1× b × d2 mm	150000	Z
20×0,2×5		80	32×0,4×8		80	50×1,0×13		80	80×5,0×22		64
20×0,25×5		64	32×0,5×8		80	50×1,2×13		80	100×0,5×22		160
20×0,3×5		64	32×0,6×8		64	50×1,6×13		64	100×0,6×22		160
20×0,4×5		64	32×0,8×8		64	50×2,0×13		64	100×0,8×22		128
20×0,5×5		48	32×1,0×8		64	50×3,0×13		48	100×1,0×22		128
20×0,6×5		48	32×1,2×8		48	50×4,0×13		48	100×1,2×22		128
20×0,8×5		48	32×1,6×8		48	50×6,0×13		40	100×1,6×22		100
20×1,0×5		40	32×2,0×8		48	63×0,25×16		160	100×2,0×22		100
20×1,2×5		40	32×3,0×8		40	63×0,3×16		128	100×2,5×22		100
20×1,6×5		40	32×4,0×8		40	63×0,4×16		128	100×3,0×22		80
20×2,0×5		32	32×5,0×8		32	63×0,5×16		128	100×4,0×22		80
20×3,0×5		32	32×6,0×8		32	63×0,6×16		100	100×5,0×22		80
20×4,0×5		24	40×0,2×10		128	63×0,8×16		100	100×6,0×22		64
20×6,0×5		24	40×0,25×10		100	63×1,0×16		100	125×1,0×22		160
25×0,2×8		80	40×0,3×10		100	63×1,2×16		80	125×1,2×22		128
25×0,25×8		80	40×0,4×10		100	63×1,6×16		80	125×1,6×22		128
25×0,3×8		80	40×0,5×10		80	63×2,0×16		80	125×2,0×22		128
25×0,4×8		64	40×0,6×10		80	63×2,5×16		64	125×2,5×22		100
25×0,5×8		64	40×0,8×10		80	63×3,0×16		64	125×3,0×22		100
25×0,6×8		64	40×1,0×10		64	63×4,0×16		64	125×5,0×22		80
25×0,8×8		48	40×1,2×10		64	63×6,0×16		48	125×6,0×22		80
25×1,0×8		48	40×1,6×10		64	80×0,3×22		160	160×1,0×32		160
25×1,2×8		48	40×2,0×10		48	80×0,4×22		160	160×1,2×32		160
25×1,6×8		40	40×2,5×10		48	80×0,5×22		128	160×1,6×32		160
25×2,0×8		40	40×3,0×10		48	80×0,6×22		128	160×2,0×32		128
25×2,5×8		40	40×4,0×10		40	80×0,8×22		128	160×3,0×32		128
25×3,0×8		32	40×5,0×10		40	80×1,0×22		100	160×4,0×32		100
25×4,0×8		32	50×0,2×13		128	80×1,2×22		100	200×1,2×32		200
25×5,0×8		32	50×0,3×13		128	80×1,6×22		100	200×1,6×32		160
25×6,0×8		24	50×0,4×13		100	80×2,0×22		80	200×2,0×32		160
32×0,2×8		100	50×0,5×13		100	80×2,5×22		80	200×2,5×32		160
32×0,25×8		100	50×0,6×13		100	80×3,0×22		80	200×3,0×32		128
32×0,3×8		80	50×0,8×13		80	80×4,0×22		64	200×4,0×32		128

DIN DIN coarse

HSS 1838 B 1838 C

+15° Cutting data

150100 REKORD, coarsely serrated B

150200 REKORD, coarsely serrated C

d1× b × d2 mm	150100	150200	Z	d1× b × d2 mm	150100	150200	Z	d1× b × d2 mm	150100	150200	Z	d1× b × d2 mm	150100	150200	Z
50×0,5×13		—	48	63×3,0×16			32	100×1,6×22			48	160×1,0×32			80
50×0,6×13		—	48	63×4,0×16			32	100×2,0×22			48	160×1,2×32			80
50×0,8×13		—	40	80×0,5×22		—	64	100×2,5×22			48	160×1,6×32			80
50×1,0×13			40	80×0,6×22		—	64	100×3,0×22			40	160×2,0×32			64
50×1,2×13			40	80×0,8×22		—	64	100×4,0×22			40	160×2,5×32			64
50×1,6×13			32	80×1,0×22			48	100×5,0×22			40	160×3,0×32			64
50×2,0×13			32	80×1,2×22			48	100×6,0×22			32	160×4,0×32		—	48
50×2,5×13			32	80×1,6×22			48	125×0,8×22		—	80	160×5,0×32			48
50×4,0×13			24	80×2,0×22			40	125×1,0×22			80	160×6,0×32		—	48
50×5,0×13			24	80×2,5×22			40	125×1,2×22			64	200×1,6×32			80
50×6,0×13			20	80×3,0×22			40	125×1,6×22			64	200×2,0×32			80
63×0,5×16		—	64	80×4,0×22			32	125×2,0×22			64	200×2,5×32			80
63×0,6×16		—	48	80×5,0×22			32	125×2,5×22	—		48	200×3,0×32			64
63×0,8×16		—	48	100×0,5×22		—	80	125×3,0×22			48	200×4,0×32			64
63×1,0×16			48	100×0,8×22		—	64	125×4,0×22	—		48	125×4,0×22	—		48
63×2,0×16			40	100×1,0×22			64	125×5,0×22	—		40	125×5,0×22	—		40
63×2,5×16			32	100×1,2×22			64	125×6,0×22		—	40	125×6,0×22	—	—	40
