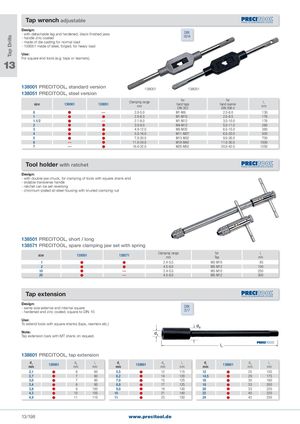

Tap Drills Tap wrench adjustable Design:- with detachable leg and hardened, black-finished jaws- handle zinc coated DIN1814 - made of die casting for normal load - 138051 made of steel, forged, for heavy load Use: For square end tools (e.g. taps or reamers). 13 138001 PRECITOOL, standard version 138001 138051 138051 PRECITOOL, steel version size 138001 138051 Clamping rangemm forhand tapsDIN 352 forhand reamerDIN 206 d l1mm 0  — 2.0-5.0 M1-M8 2.5-6.0 130 1   2.0-6.3 M1-M10 2.5-8.5 176 1.1/2  — 2.1-8.0 M1-M12 3.5-10.0 176 2   3.0-9.0 M4-M12 5.0-11.0 280 3   4.9-12.0 M5-M20 6.5-15.0 380 4   5.5-16.0 M11-M27 6.5-20.0 505 5   7.0-20.0 M13-M32 9.0-26.0 700 6 —  11.0-24.0 M18-M42 11.0-30.0 1000 7 —  16.0-32.0 M25-M52 20.0-42.0 1250 Tool holder with ratchet Design: - with double-jaw chuck, for clamping of tools with square shank end - slidable transverse handle - ratchet can be set reversing - chromium-plated all-steel housing with knurled clamping nut 138501 PRECITOOL, short / long 138571 PRECITOOL, spare clamping jaw set with spring size 138501 138571 Clamping range mm forTap l1mm 1   2.4-5.5 M3-M10 85 2   4.5-8.0 M5-M12 100 10  — 2.4-5.5 M3-M10 250 20  — 4.5-8.0 M5-M12 300 Tap extension Design: - same-size external and internal square- hardened and zinc coated, square to DIN 10 DIN377 Use: To extend tools with square shanks (taps, reamers etc.) Note: Tap extension bars with MT shank on request. 138601 PRECITOOL, tap extension d1mm 138601 d 3mm l 1mm d1mm 138601 d 3mm l 1mm d1mm 138601 d 3mm l 1mm 2,1  6 60 5,5  12 115 12  25 155 2,7  7 80 6,2  14 120 14,5  29 175 3,0  7 90 7,0  15 125 16  30 180 3,4  8 95 8,0  17 125 18  33 200 3,8  9 100 9,0  19 130 20  33 220 4,3  10 105 10  21 140 22  40 220 4,9  11 110 11  23 150 24  42 235 13/198 www.precitool.de
