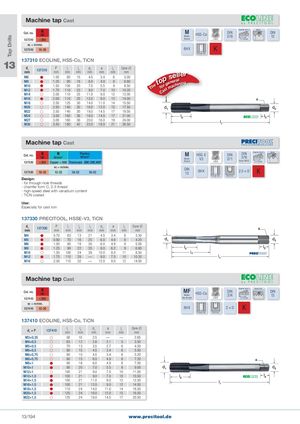

Общий каталог PRECITOOL - страница 199

Machine tap Cast

	K	M		DIN	Chamfer form C	Metric DIN
	HB			376		13
		Metric
137310	<300	thread			L
			coated		2-3 threads
vc = m/min.			K
137310	15-20	6HX

Through hole 13 137310 ECOLINE, HSS-Co, TiCN

d1 mm	137310	P mm	l1 mm	l2 mm	d2 mm	a mm	l3 mm	Corex mm
M6		1�00	80	15	4�5	3�4	6	5�00
M8		1�25	90	18	6�0	4�9	8	6�80
M10		1�50	100	20	7�0	5�5	8	8�50
M12		1�75	110	23	9�0	7�0	10	10�20
M14		2�00	110	25	11�0	9�0	12	12�00
M16		2�00	110	25	12�0	9�0	12	14�00
M18		2�50	125	30	14�0	11�0	14	15�50
M20		2�50	140	30	16�0	12�0	15	17�50
M22		2�50	140	30	18�0	14�5	17	19�50
M24		3�00	160	36	18�0	14�5	17	21�00
M27		3�00	160	36	20�0	16�0	19	24�00
M30		3�50	180	42	22�0	18�0	21	26�50

ThThTT fo st m

Machine tap Cast

	K	N	Plastics	M	HSS-E		DIN	DIN	Chamfer form C	Metric
Cat. no.										60°
	HB	N/mm2	N/mm2		V3		371	376
				Metric
137330	<300	Copper < 900 Thermoset GRP, CRP, ARP		thread		coated		from M12	L
									2-3 threads
		vc = m/min.		DIN					K
137330	18-32	12-22	18-32	18-32	6HX			2.5 × D
				13
Design:						Through hole	Blind hole

- for through-hole threads - chamfer form C, 2-3 thread - high-speed steel with vanadium content - TiCN coated

Use: Especially for cast iron

137330 PRECITOOL, HSSE-V3, TiCN

d1 mm	137330	P mm	l1 mm	l2 mm	l4 mm	d2 mm	a mm	l3 mm	Corex mm
M4		0�70	63	13	21	4�5	3�4	6	3�30
M5		0�80	70	16	25	6�0	4�9	8	4�20
M6		1�00	80	19	30	6�0	4�9	8	5�00
M8		1�25	90	22	35	8�0	6�2	9	6�80
M10		1�50	100	24	39	10�0	8�0	11	8�50
M12		1�75	110	28	—	9�0	7�0	10	10�20
M16		2�00	110	32	—	12�0	9�0	12	14�00

Machine tap Cast

K MF DIN Chamfer form C Metric fine DIN

Cat. no. HSS-Co 60°

HB		374	13
	Metric

137410	<300	fine thread			L
			coated		2-3 threads
vc = m/min.					K
137410	15-20	6HX		2 × D

Through hole Blind hole 137410 ECOLINE, HSS-Co, TiCN

d1× P	137410	l1 mm	l2 mm	d2 mm	a mm	l3 mm	Corex mm
M3×0,35		56	10	2�5	—	—	2�65
M4×0,5		63	12	2�8	2�1	5	3�50
M5×0,5		70	13	3�5	2�7	6	4�50
M6×0,5		80	15	4�5	3�4	6	5�50
M6×0,75		80	15	4�5	3�4	6	5�20
M8×0,75		80	15	6�0	4�9	8	7�20
M8×1		90	18	6�0	4�9	8	7�00
M10×1		90	20	7�0	5�5	8	9�00
M12×1		100	21	9�0	7�0	10	11�00
M12×1,5		100	21	9�0	7�0	10	10�50
M14×1,5		100	21	11�0	9�0	12	12�50
M16×1,5		100	21	12�0	9�0	12	14�50
M18×1,5		110	24	14�0	11�0	14	16�50
M20×1,5		125	24	16�0	12�0	15	18�50
M22×1,5		125	24	18�0	14�5	17	20�50
